10AWG Solar Extension Cable 60FT, Solar Panel Wire, 10 Gauge Tinned Copper PV Wire with Waterproof Female and Male Connector for Home Marine RV Solar Photovoltaic Systems
Product details
| Management number | 210755111 | Release Date | 2026/04/02 | List Price | $24.80 | Model Number | 210755111 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- PRODUCT SPECIFICATION: 10 AWG PV Cable,TÜV/CE/RoHS certified. Wire gauge: 10 AWG (6 mm²). Test Voltage: 6500V. Rated: DC 1500V / AC 1000V, 54A. Conductor: ≤3.39Ω/km (20°C), 84/0.285mm tinned Cu. XLPO sheath/insulation. Operating temp: -40°F to 194°F

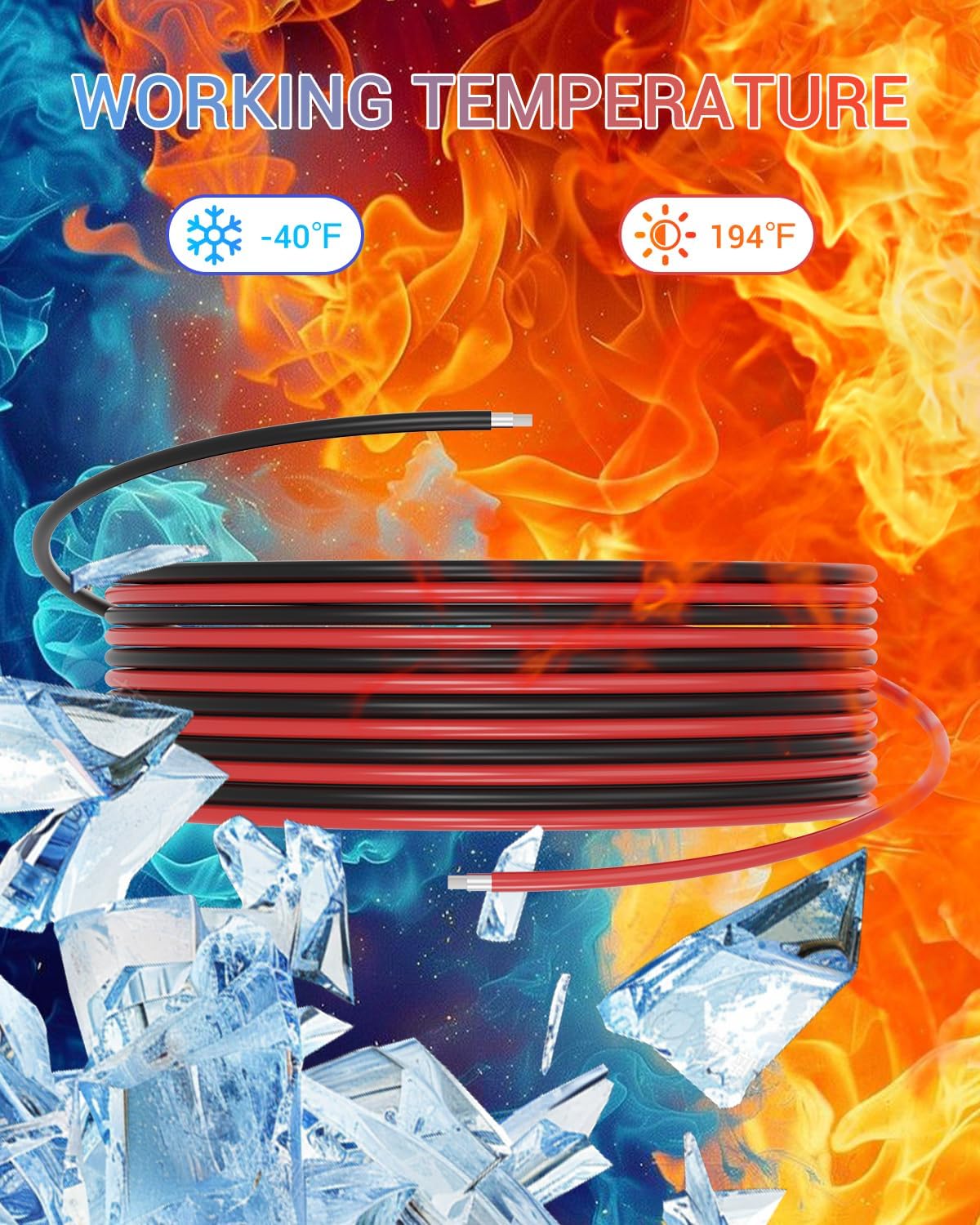

- DOUBLE SHEATH STRUCTURE: 10 gauge solar extension cable feature double XLPO insulation/sheath, operating from -40°F to 194°F vs. 158°F for PVC-sheathed solar cables. The sheath provides IP68 water/moisture/UV/corrosion resistance, ensuring reliable performance in harsh environments

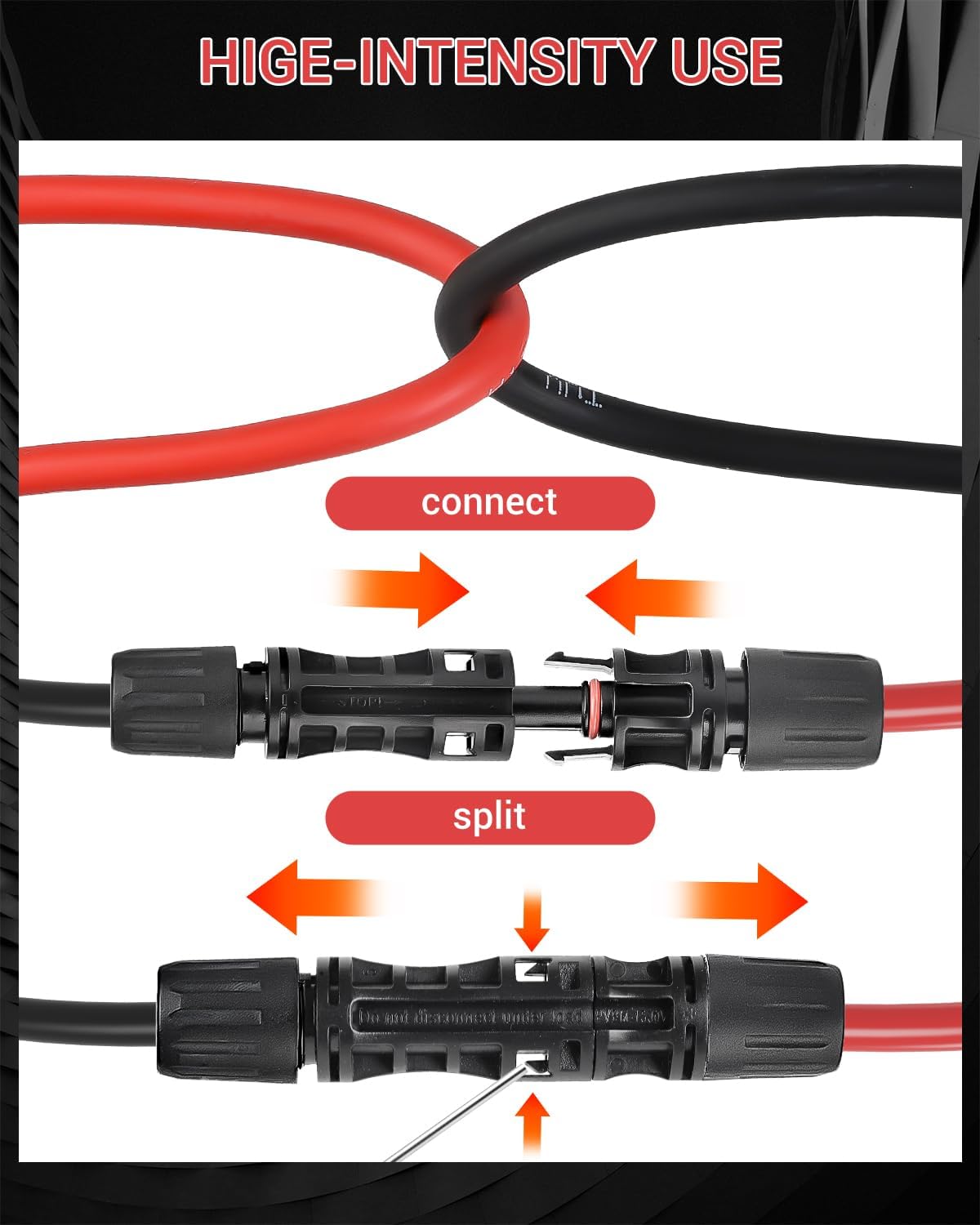

- SAFE to USE: Our 10AWG solar wires is equipped with a pair of connectors. The male connector features an IP67 waterproof ring to prevent water/dust ingress. Rated for 1500V DC versus conventional 1000V, these connectors prioritize safety and reliability in solar panel wire connections
- MULTI-FUNCTIONAL COMPATIBILITY: This solar panel cable is compatible with the vast majority of solar components (solar panels, inverters, etc.); ideal for rooftop, balcony/patio, solar farms, warehouse, pumps, generators, and marine/RV applications
- 2 PIECE SET: 60Ft black + 60Ft red 10AWG solar wires with 2 pre-connected IP68 connector pairs. Plug-and-play for flexible panel placement. Disconnect by pressing the male connector’s lock with a hard thin rod/scissors
| Color | Red+Black |
|---|---|
| Model | ZW-Solar Wire-BR-60FT-US |
| Brand Name | ENERJOUR |
| Cable Type | Solar Extension Cable |
| Model Name | ZW-Solar Wire-BR-60FT-US |
| Item Weight | 12.8 ounces |
| Manufacturer | ENERJOUR |
| Connector Type | XLR |
| Number of Pins | 8 |
| Maximum Current | 54 Amps |
| Maximum Voltage | 1500 Volts (DC) |
| Connector Gender | Male-to-Female |
| Specification Met | RoHS |
| Compatible Devices | Solar Panels, Inverters, Solar Charge Controllers, Solar Inverter, Solar Panel System, Solar Generator, Solar Battery, Solar Pump, Solar Lighting, Solar Water Heater |
| Indoor Outdoor Usage | Outdoor |
| Recommended Uses For Product | Solar panel connections, Solar farms, Warehouse, Pumps, Generators, Marine/RV applications |
| Other Special Features of the Product | Weatherproof |
