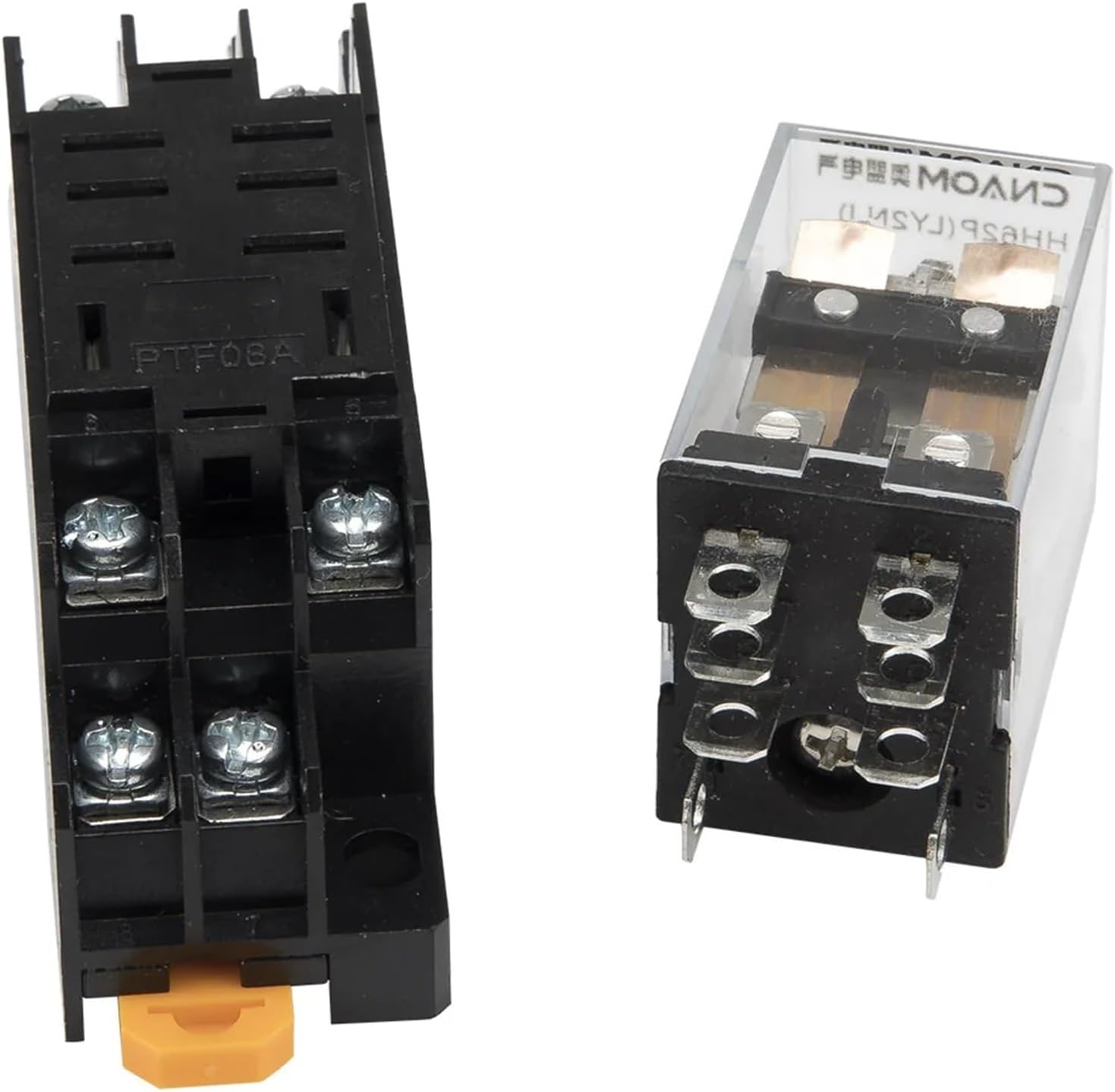

10pcs/lot JQX-13FL LED Indicator electromagnetic Relay with Socket LY2 HH62P Series AC 220V 110V DC 24V 12V LY2NJ HH62PL HH62P-L(220VAC)

relayRelayJQX-13Fseries electromagnetic relayModel number and typeModel numberSame modelTypeRelated productJQX-13FLY2 HH62PStandardJQX-13FLLY2NJ HH62PL HH62P-LWith LED indicatorVisiting...JQX-13FL electromagnetic relay model number legendJQX-13FLParent Model NumberSocket-N: Without socket-S: With socketCoil voltage220VAC: 220VAC110VAC: 110VAC24VDC: 24VDC12VDC: 12VDCGeneralModel numberJQX-13F seriesContact materialSilver alloyContact formDPST-NO DPST-NC DPDTContact rating10A@28Vdc/240VacRated coil power1.2Wac 0.9WdcRated coil voltageAC/DC: 6 12 24 36 48 110 220V; AC380VDielectric strength1 500Vac 50/60 Hz for 1 min between coil and contacts1 200Vac 50/60 Hz for 1 min between opening contactsPick-up voltageDC types: 75% max; AC types: 80% maxDrop-out voltageDC types: 10% min; AC types: 30% minOperation voltage110% maxContact resistance50m maxTermination8 pinsMountingQuick connect Matched socketPTF08A PT08Mechanical life1x107 operations minElectrical life1x105 operations minInsulation resistance100M min. at 500 VDCOperating temperature-30 to 55 °C (-22 to 131 °F)Operating humidity35 to 85% RH no condensationExternal dimensions27.3x21x35.2 mmAlias nameLY2 series power relay electric relay electrical relayJQX-13FL electromagnetic relay related productsNoModel NumberSocketCoil VoltageRelated Product1 JQX-13FL-N220VAC(110VAC 24VDC 12VDC)Without socket220VAC; 110VAC; 24VDC; 12VDCOrder2 JQX-13FL-S220VAC(110VAC 24VDC 12VDC)With socket220VAC; 110VAC; 24VDC; 12VDC
