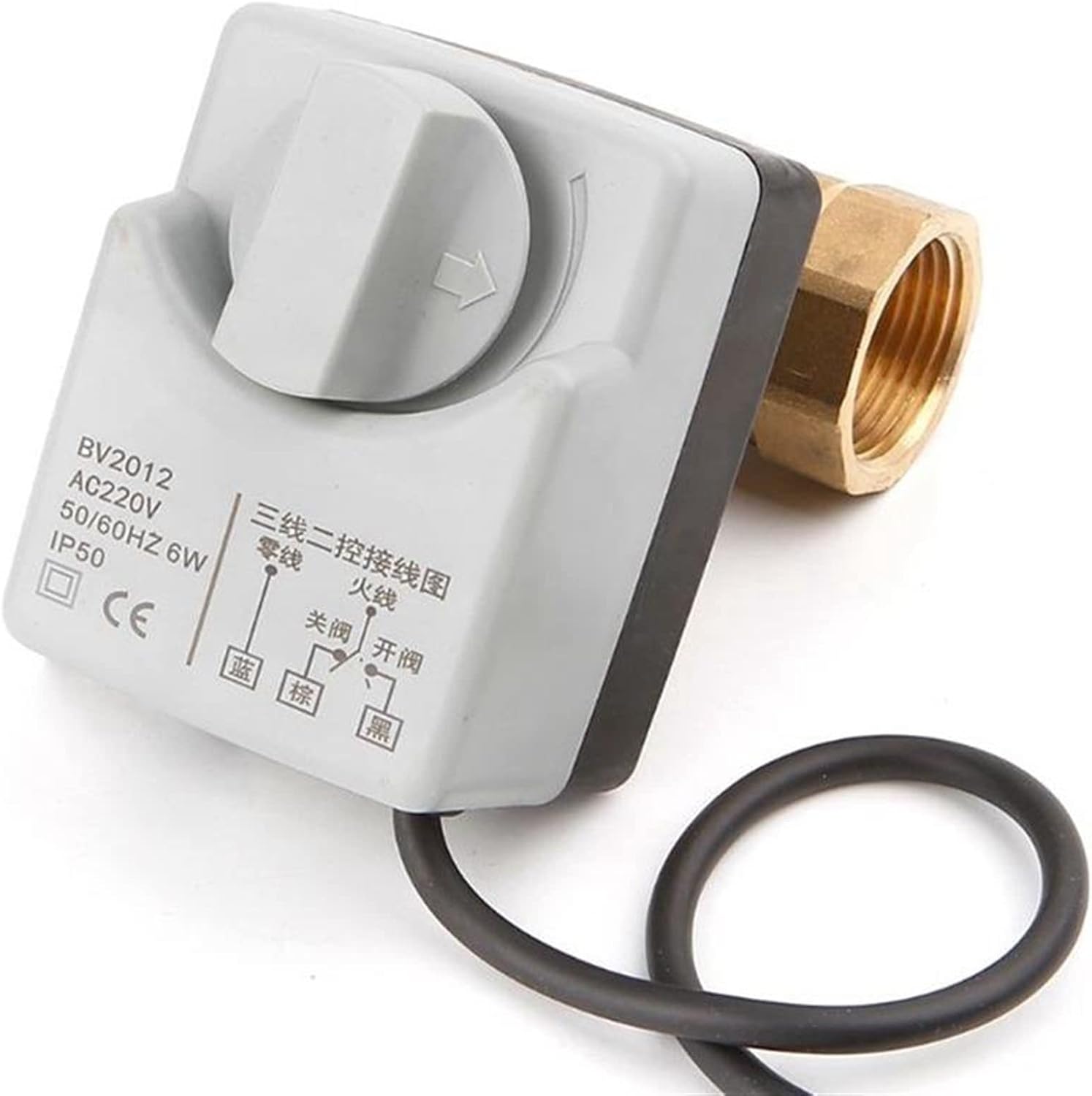

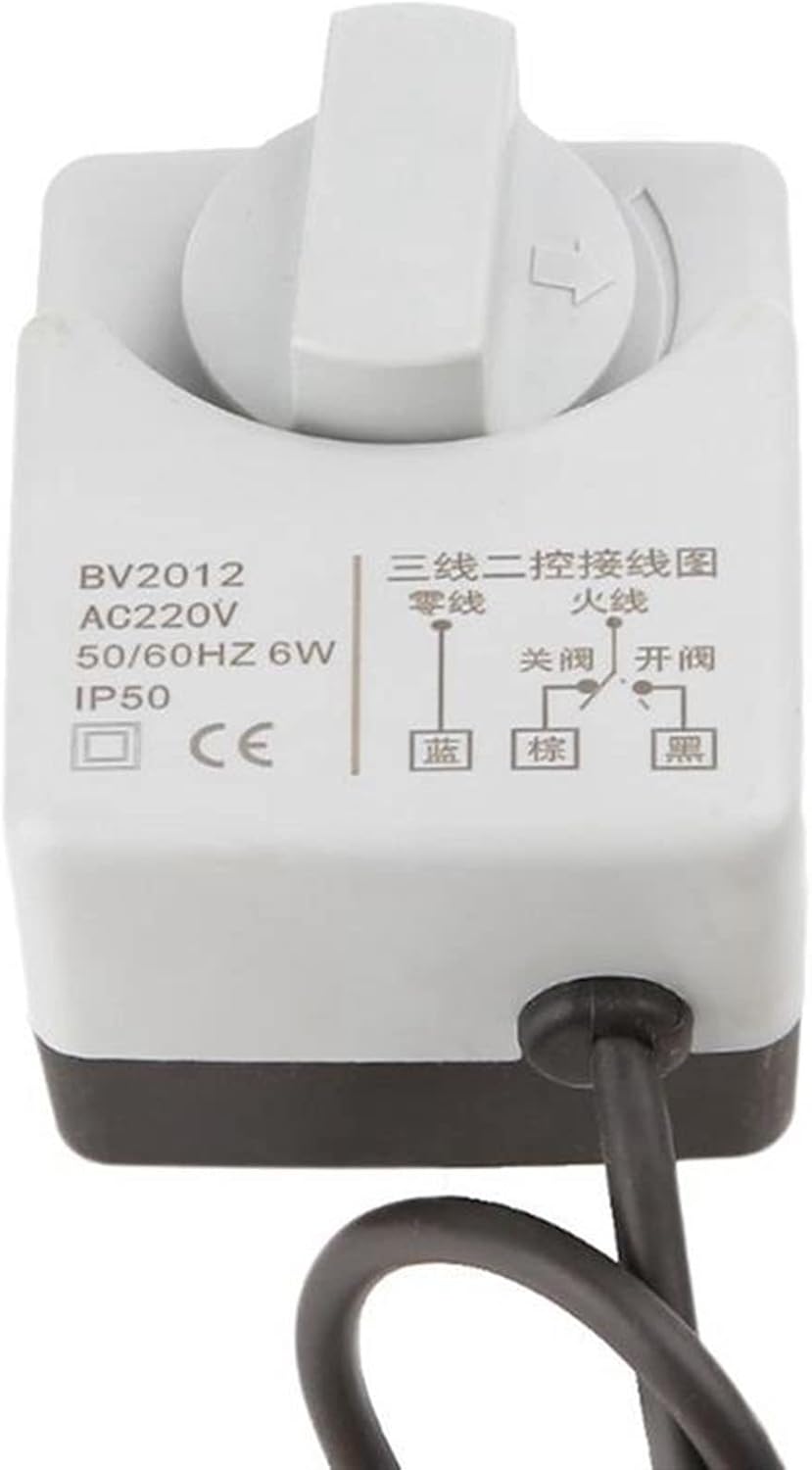

1/2" to 2" Electric Actuator with Manual Control 2 Way 3way Brass Electric Ball Valve for Water/Oil/Air Replace Solenoid Valve(Ac220v-2 Way,DN15)

Water valveSolenoid ValvesValvesDimension:DN15 DN20 DN25 DN32 DN40Feature:3-Wire Two ControlWay:2Way /3Way (3 Way is T type)Open/Close Time: 25 secondsMaxmum Working Pressure: 1.6 MPa / 232psi;Medium: Water Air Oil;Voltage: AC220V 50/60 Hz Available;Power: Max is 6WOperation: Motor and hand(with manual switch function)Life Time: 100000 times;Material: Brass ABS plasticSeal Material: EPDM & PTFE;Enviroment Temperatur :0°~65° in ;MediumTemperatur: 0°~95° in CelsiuProtect Class: IP 54Pay attention to a few points!1. The valve opening and closing line cannot be charged at the same time otherwise the motor will be damaged or the work will not be normal!2. It is not allowed to switch multiple switches in parallel at the same time otherwise they will be connected in series and abnormal.3. It is not waterproof and can not be used outside or in humid environment.4. The voltage should be stable within 220 ± 10%This brass motorized ball valve applicable to air conditioning fan coil system and heating system in the off control by the ball valve and the actuator composition Actuator using synchronous motor drive built-in limit contacts the valve can be fully open or full off when the power stable action.This Valve used for heating systems and air-conditioning fan coil systems on-off controlled by the valve and actuator components actuators driven by a rotary valve ball 90 percent ofmovement.Synchronous motor driven actuator Built-in limit contacts enabling the valve in the fully open or fully closed off the action and stability.T-type three-way ball valve:The motor is three-wire two-control The blue line is the public line The black line is on The brown line is off.The blue wire is connected to the neutral wire Black live wire A-B connection.The brown wire is connected to the live wire and C-B is connected.
