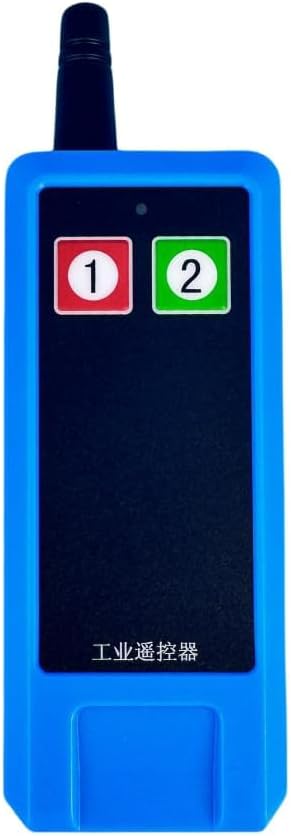

2-Channels DC12V 24V 48V Wireless remote control switch Receiver Controller Bidirectional feedback function Work Simultaneously Crane Linear Drives Light Motor with Antenna

Package Include: 1 x Receiver 1 x Transmitter 1 x User manual 1 x 3M Antenna 1 x 18 month warranty Receiver parameters Working voltage: DC12~48V Standby Current: 16mA for DC12V Power Supply, 10mA for DC24 Power Supply Working temperature: -30 ℃~+80 ℃ Sensitivity: ≥ -112dBm Operating frequency: 433MHz Load current: ≤ 5A Control mode Description Toggle / Self-locking mode: Press -> On; Press again -> Off. Momentary mode: Press and hold -> On; Release -> Off. Latch / Interlocking mode: Press -> On; Press another button -> Off. Setting different control modes:(Realize different functions by learning the number of button presses, Must enter learning mode) We have set the receiver as Momentary control mode before delivery,. If you want to use other control modes, do as following operation Or tell us the mode you need after placing the order: Momentary: (Press the learn button once to learn) Toggle:(Press the learn button twice to learn) Latched: (Press the learn button three times to learn) 1 channel Toggle+1 channel Momentary (Press the learn button 4 times to learn) 1.5-second delay momentary mode (press the learn key five times to learn) 3-second delay momentary mode (press the learn button six times to learn) 5-second delay momentary mode (press the learn button seven times to learn) 10-second delay momentary mode (press the learn button 8 times to lear) Learn Code Press the learn button 3 seconds until the LED light lights up once. The recipient now remains in the state of learning.and then you can press the appropriate button to learn according to your requirement. Delete Code: Press and hold the learn button for about ten seconds until the light turns off. If you need to change the working mode, you need to delete the previous working mode first. Working Range:the maximum working distance can reach 200M in an open ground. The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.

• Wide voltage+support for one set of multiple buttons to work simultaneously+also support multiple sets of multiple buttons to work simultaneously：with socket for DC power adapters; Broad voltage input: DC 12V 24V, Coding method: Learning code,
• Signal stability and range: RF remote control uses RF technology and stable signal. The product is a relay output that can control devices with different voltages. Remote distance: 200m (in the open field) wireless control, easy to install. The range is about 200M in the open field, it can just pass through walls and so on. But please note: trees, walls or other obstacles shorten the area. The product has six working modes.
• Feedback Function+Service: You can observe feedback by the color of the remote control indicator light. Press the remote control: The red light indicates that no signal has been received and the receiver is not working; The blue light indicates that the signal has been received and the receiver is working properly. Before delivery, our technicians paired and tested the remote control and receiver. When you get it, just install it via the wiring diagram. If you do not know how to wire, please contact us. We offer you 18 month warranty and technical service.
• Easy to control+Dry contact signal: You can use multiple remote controls, and multiple remote controls can control one receiver. In the same environment where multiple product groups of the same model are used, the products do not interfere with each other. The radio receiver is a relay output without potential, with NO, NC, COM, (Normally open+Normally closed+Common terminal).
• The product has stable performance, small size and high reception sensitivity from. It has many applications, especially suitable for wired door and window controls and anti-theft alarm systems to realize the change from wired to wireless systems. Used in industrial control and security fields: such as lamps, electric doors, winches, motors, lifters, gates, remote controls, etc.
