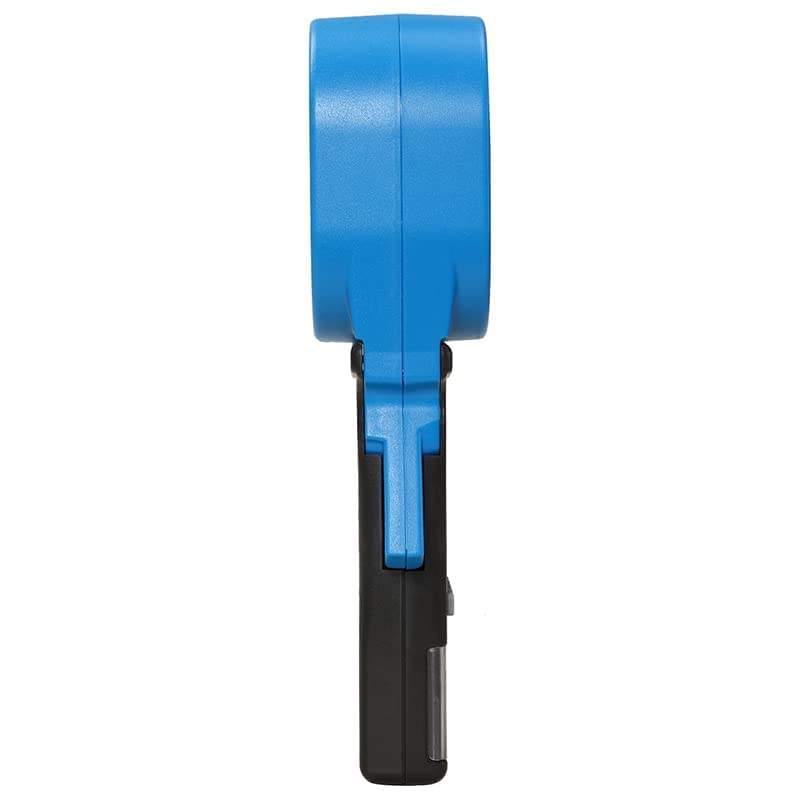

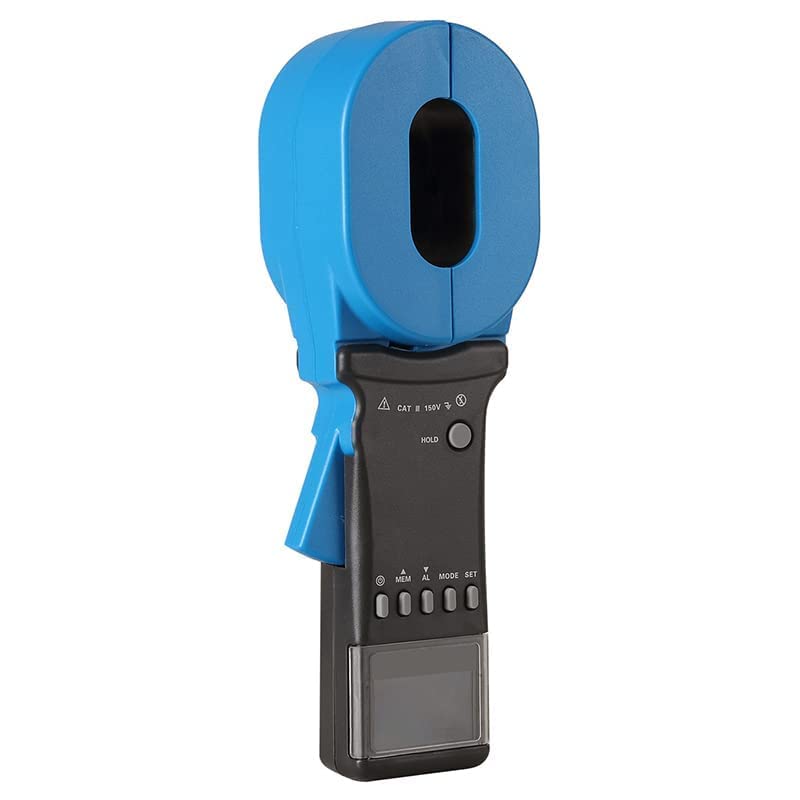

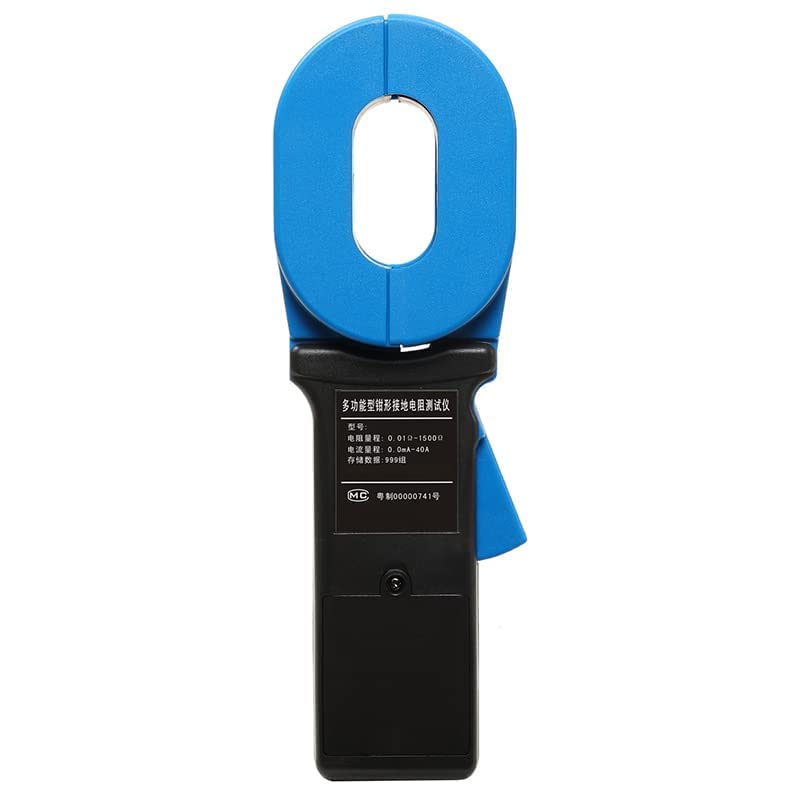

Clamp Ground Resistance Tester Multi-Functional Earth Resistance Meter Tester Loop Resistance Measurement Instrument with Resistance Range 0.01 to 1500Ω Resolution 0.001Ω 999 Sets Data Storage

Technical Specifications ❤Function:Ground resistance test, Loop resistance test ❤Power Supply:Rechargable Lithium DC3.7V 2600mAh ❤Resistance Range:0.01-1500Ω ❤Resistance Resolution:0.001Ω ❤Highest Resistance Accuracy:±1%±0.01Ω ❤Current Range:0.00mA-40.0A ❤Current Resolution:0.05mA ❤Highest Current Accuracy:±2.5%±1mA ❤USB Interface:1.5M USB Cable ❤Data memory:999 Sets ❤Working Current:≤50mA ❤Start self inspection time:≤1s ❤Clock Function:display hour,minute ❤Alarm Threshold Setting Range:Resistance: 0-1500Ω,Current: 1-9999A ❤Alarm Sound and Light:“Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold. ❤Interference Signal Recognition:“Beep-beep-beep” tone, NOISE symbol blinking ❤Working Temperature and Humidity:-20℃-55℃;20%RH-90%RH(Please storge and Operate the instrument at its ranges) ❤LCD Screen:4 Digits LCD display, Screen L×W: 47mm×28.5mm ❤Clamp Size:65mm×32mm ❤Clamp Opening Extent:32mm ❤Clamp Dimension:L×W×T: 285mm×85mm×56mm ❤Protection Level:Dual Insulation ❤Structural Feature:Clamp CT ❤Shifting:Automatic shifting ❤External magnetic field:<40A/m ❤External electrical field:<1V/m ❤Single measurement time:0.5 second ❤Resistance measurement frequency:>1KHz ❤Measured current frequency:50/60Hz Automatic measurement ❤Over Range Indication:Out of range indication “OLΩ”, “L0.01” or “OL A” ❤Power Consumption:Max 50mA either in booting up or normally working, Continuously working for 30 hours ❤USB interface:The data stored in the meter are uploaded to the computer through USB interface and data wire, Then generate report files

• The High-end Multifunction Clamp Earth Resistance Tester is applied in measurement of grounding resistance and the loop resistance (range: 0.010 Ω Ω ~ 1500); Leakage current measurement (Range: 0.000mA~40.0A).
• It has different kinds of display combination mode,can choose to display at same screen with resistance + current, resistance+time, current+time.
• Measurement range more larger,storage data 999 sets,power consumption more lower,adopt nickel-metal hydride rechargeable battery, supporting monitoring software with online real-time monitoring, historical query, software alarm setting, historical data reading, saving, reports and other functions.
• It can measure the ground fault and applied to the occasions that cannot be measured by traditional methods, and it is widely used for the earth resistance measurement of various equipment.
• When measuring the earth system with loop, there is no need to disconnect the grounding down lead, no need for auxiliary electrode, just need to clamp on the grounding lead directly. At this time, the displayed value of the meter is the comprehensive value of the grounding resistance and the grounding down lead resistance.
