Class A Customs | Under Mount 20 Gallon RV Concession Fresh and Gray Water Holding Tank | UM-2000 | 13" Wide (20 Gallon)

Fresh water holding tank designed for RV's and trailers. This tank is designed to fit between the cross members under the floor of the RV or trailer. Check the photo showing the detailed meausrements. This tank is made and approved for direct contact with drinking water. The tank will arrive with 4 female fittings that are all installed on on end where the sump section is located. Two of the fittings are 1 1/2" NPT thread, and the other two fittings are 1/2" npt thread. Please only connet plastic fittings the the tank connactions as metal fitting can damage the treads and will not be covered by warranty.Even though the tank is designed for undermounting, it can also be mounted in other locations where you have propper space. The tank can even be mounted on its side due to the fitting configuration of our tanks.

• 20 Gallon Fresh or Gray Water Holding Tank Manufactured by Class A Customs - Made from NSF Approved Materials - Fresh & Drinking Water Safe - Can be used for Fresh or Gray Water Storage

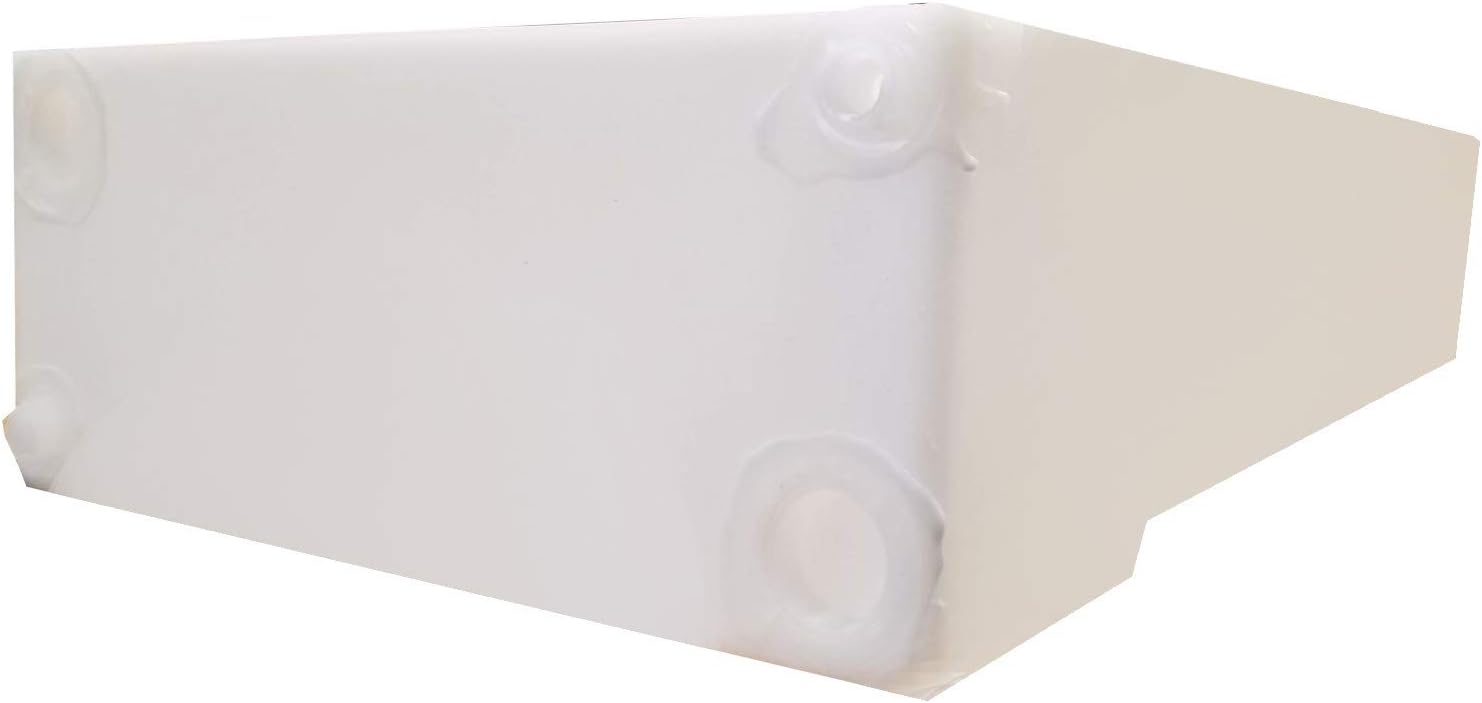

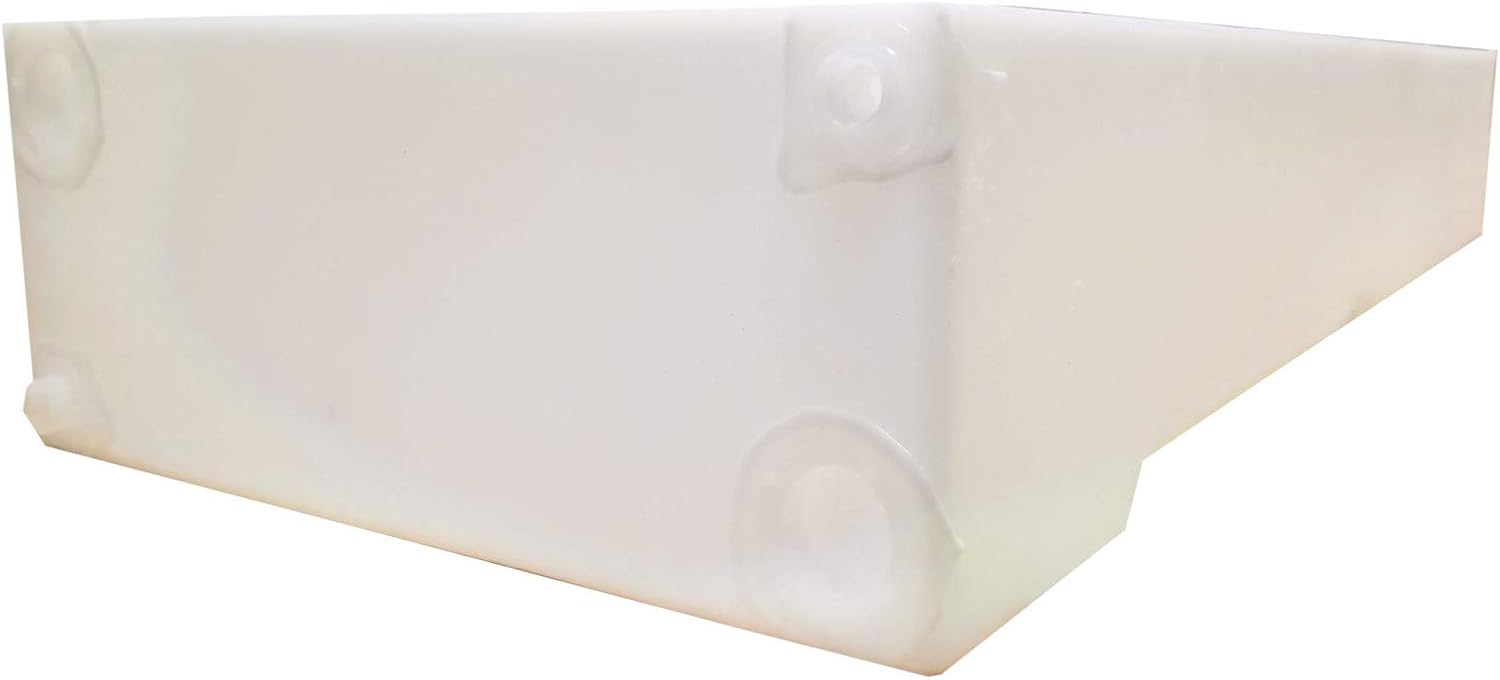

• WATER TANK MEASUREMENTS: 24” Longest Length (not including fittings) x 8.5” x 13” ” - Tank can sit on any side - rotate tank to change height or width Average Thickness 7/32” +/- Please view photos. (Due to the manufacturing process +/- .25" on each measurement)
• TANK BUILT-IN FITTINGS: (TWO) 1.5" Female NPT Fitting - fitting is sealed and watertight, to use remove membrane with razor knife (TWO) .5" Female NPT Fitting - fitting is open DO NOT over-tighten fitting damage will occur, use plastic connecting fittings as metal will damage threads.
• NON-PRESSURIZED TANK: tank must be vented allowing air in and out during use. DO NOT make a sealed connection with a garden hose directly to tank, this is a pressurized connection and will cause tank to explode causing damage. For filling tank it is recommended to use a fill dish or other gravity process.
• Great extra water storage in RV, pop-up camper, off-road vehicles, concession trailers, hot dog carts, smaller food vendors and portable hand washing sinks. Class A Customs Manufactures this item in the USA in Elkhart, Indiana. Tanks are made in a warehouse clean each tank prior to use to remove any debris, scuffs or marking from the manufacturing process.
• 13" wide to fit between 16" on center cross members
