Cutting Misting Spray System with Pump Solenoid Valve Filter Coolant Cooling Mist Sprayer Coolant Lubrication Spraying System for CNC Lathe Metal Cutting Milling Drilling

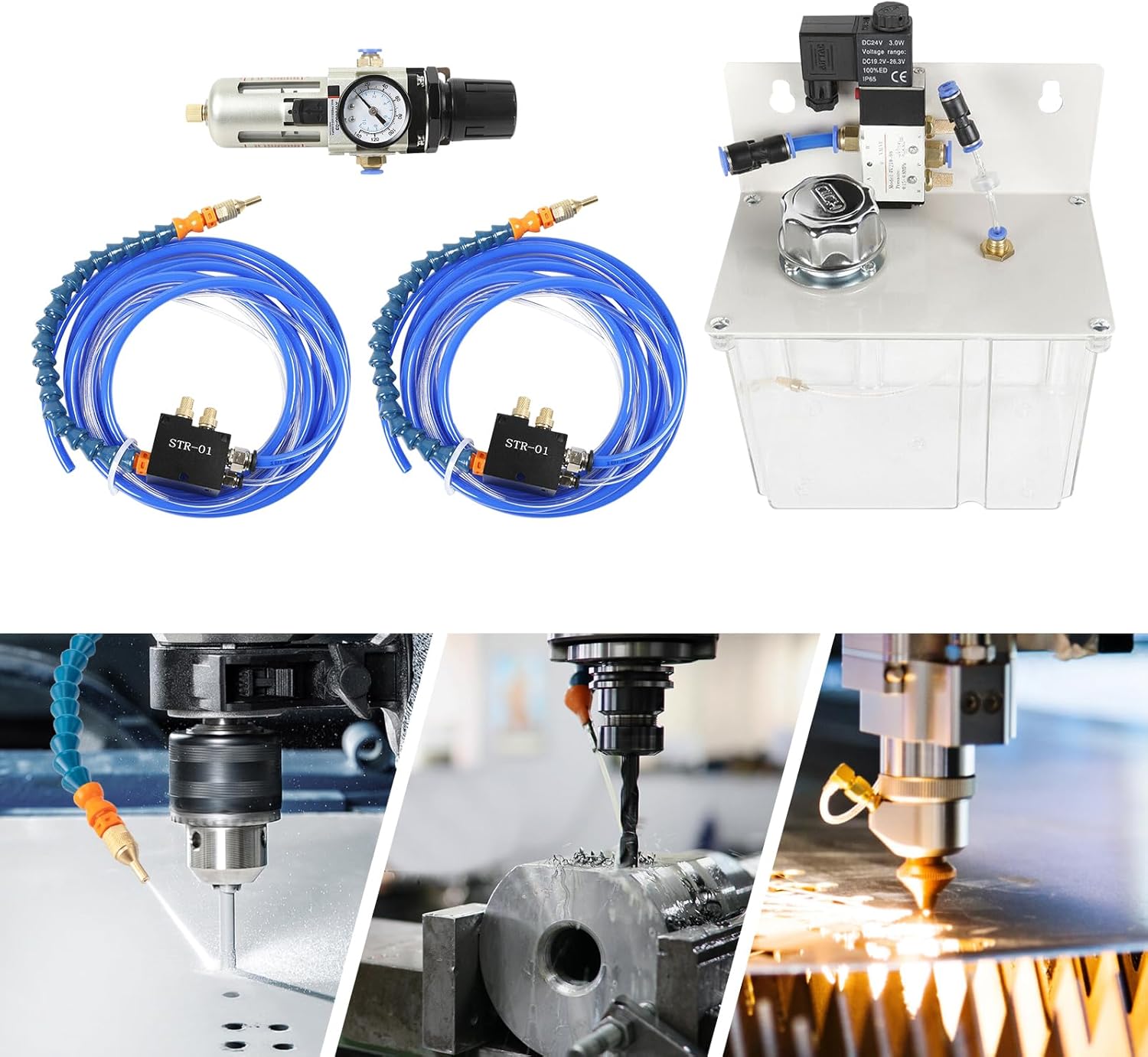

DescriptionsTank Size ：24.1x19.5x12.5cm（9.49x7.68x4.92inch）The electromagnetic valve：11.8cm（4.65in）Air filter：19.5cm（7.68in）Weight：2.45kg（5.4lb）MaterialFuel tank: resin materialFuel tank cover: A3 ironSprayer, solenoid valve: aluminum alloyAir filter: iron shell + engineering plasticFeatures1、Sprayable medium: water, alcohol, coolant, engine oil, kerosene, cooking oil.2、No water pressure required, 1KG air pressure can be sprayed.Packing listPneumatic cooling sprayx2Solenoid valvex1Air filterx1

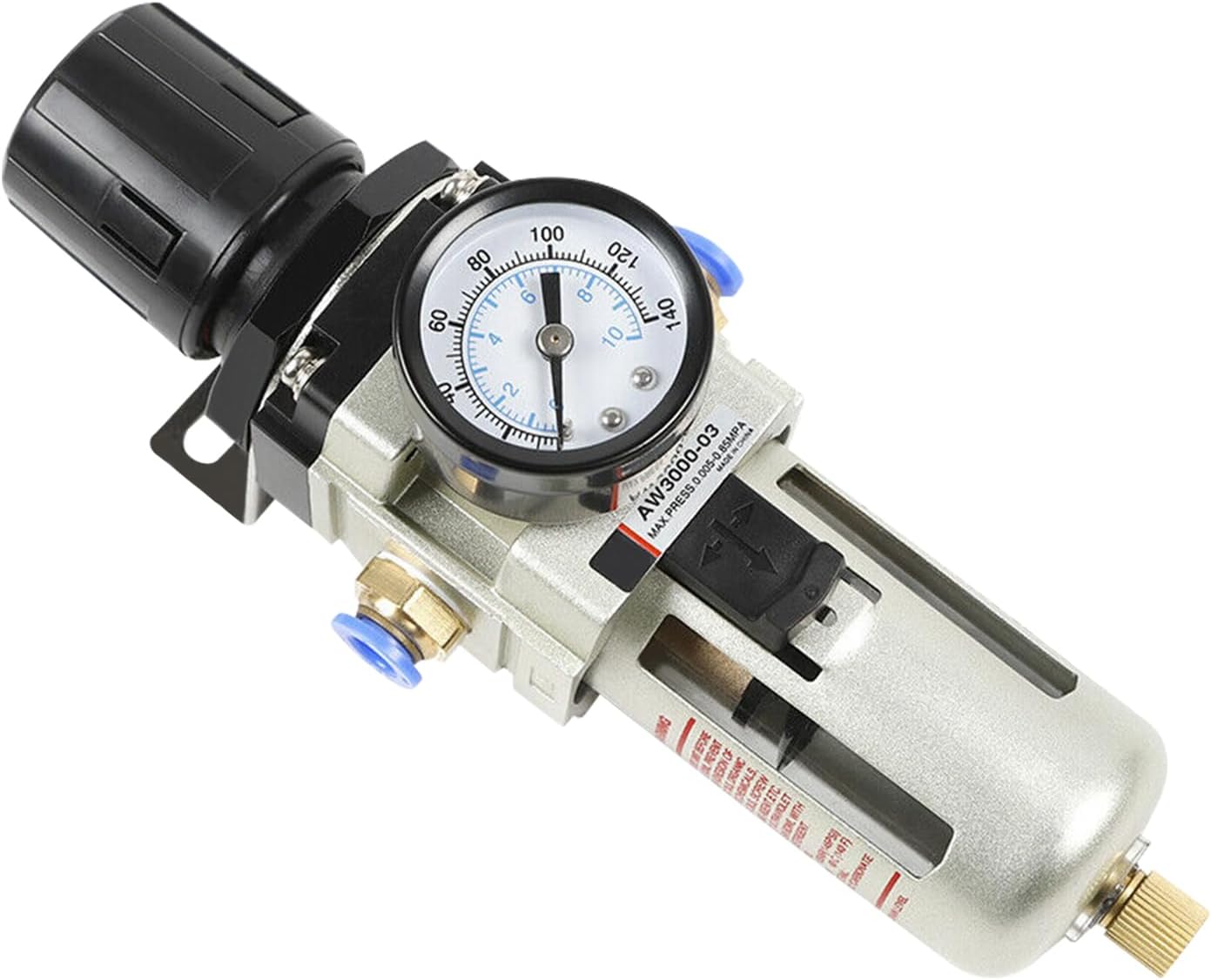

• The gas pipe of the coolant cooling spray pump intakes air from the air inlet marked IN the air filter. Air is released from the OUT outlet, and then connected to the solenoid valve with two copper mufflers on the end of the intake.
• The complimentary blue gas pipe should be plugged into the air inlet connected to the cooling spray sprayer from the end of the solenoid valve with a plug. One end of the complimentary transparent tubing is connected to the check valve on the tank and the other end is inserted directly into the oil suction port of the sprayer.
• Micro-mist Machine PLC access to the solenoid valve coil of this coolant cooling spray pump, using PLC program to control the opening and closing of the solenoid valve. Solenoid valve open, on the ventilation spray; The solenoid valve is closed, and the gas is not sprayed.
• If you want the power supply to work, you need to connect the PLC equipment or automatic signals to the solenoid valve.
• The connection method is two parallel in the solenoid valve coil, is connected to the positive and negative poles, the two contacts are not positive or negative. A separate contact on the side is grounded to prevent static electricity.
