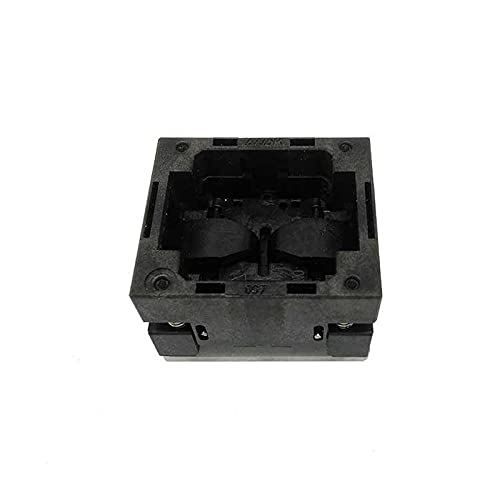

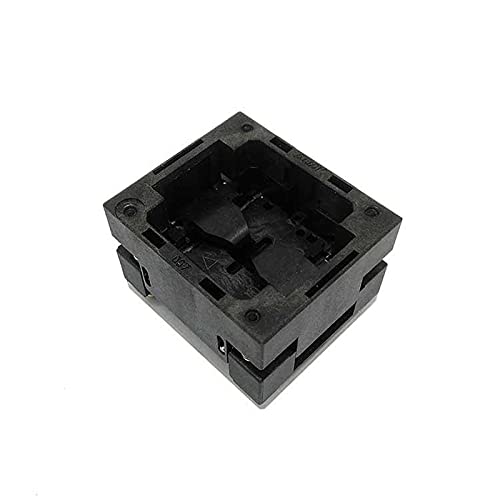

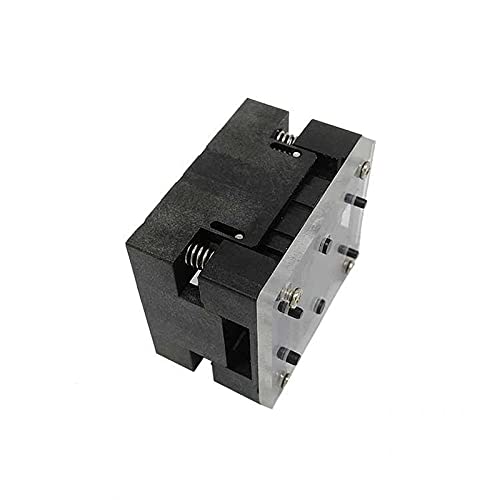

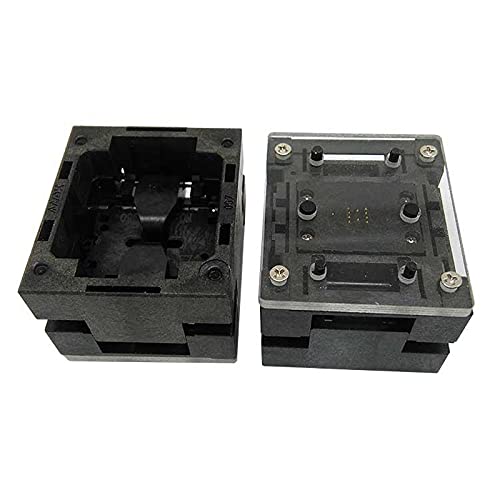

DFN8 QFN8 WSON8 Open Top Burn in Socket Pogo Pin IC Test Socket Pitch 0.8mm Chip Size 4x3 Flash Adapter Programming Socket

DFN8 QFN8 WSON8 Open Top burn in socket Pogo Pin IC Test Socket Pitch 0.8mm Chip Size 4x3 Flash Adapter Programming SocketFeatures:a.Open-top structure burn in socket b.Adopting engineering material for socket structure,Strength is high ,lifetime is longc.Adopting import BeCu material for socket contactSpring ,thickening gold-plating surface ,impedance is small elasticity is goodd.For 0.8mm pitch packagee.Thru hole design Material & Performance:Ø socket Body: PEIØ Contacts:Beryllium Copper AlloyØ Contact Plating:Gold over NickelØ Operation Force:2.0KG min, the more PINs the greater forceØ Contact Resistance:50mΩ maxØ Dielectric:700V AC for 1 minuteØ Insulation Resistance:1,000MΩ500V DCØ Max Current Capacity : 1AØ Temperature Rating:-55℃~+175 ℃Ø Life Span 20,000 Times (Mechanical)Specification and Dimension :a) Type : QFN8 (open top structure)b)b)Apply chip:WSON8/VSON8/XSON8/FC-QFN8/DFN8/DIL8/SON8c) Pin pitch : 0.8 mmd) Pin Count : 8e) Applicable IC Body Dimension : 4x3 mmItem specifics:Condition: NewType: Drive ICModel number: DFN8 QFN8 WSON8 Open Top burn in socketIs customized: Yes

• a.Open-top structure burn in socket
• b.Adopting engineering material for socket structure, Strength is high ,lifetime is long
• c.Adopting import BeCu material for socket contact
• Spring ,thickening gold-plating surface ,impedance is small elasticity is good
