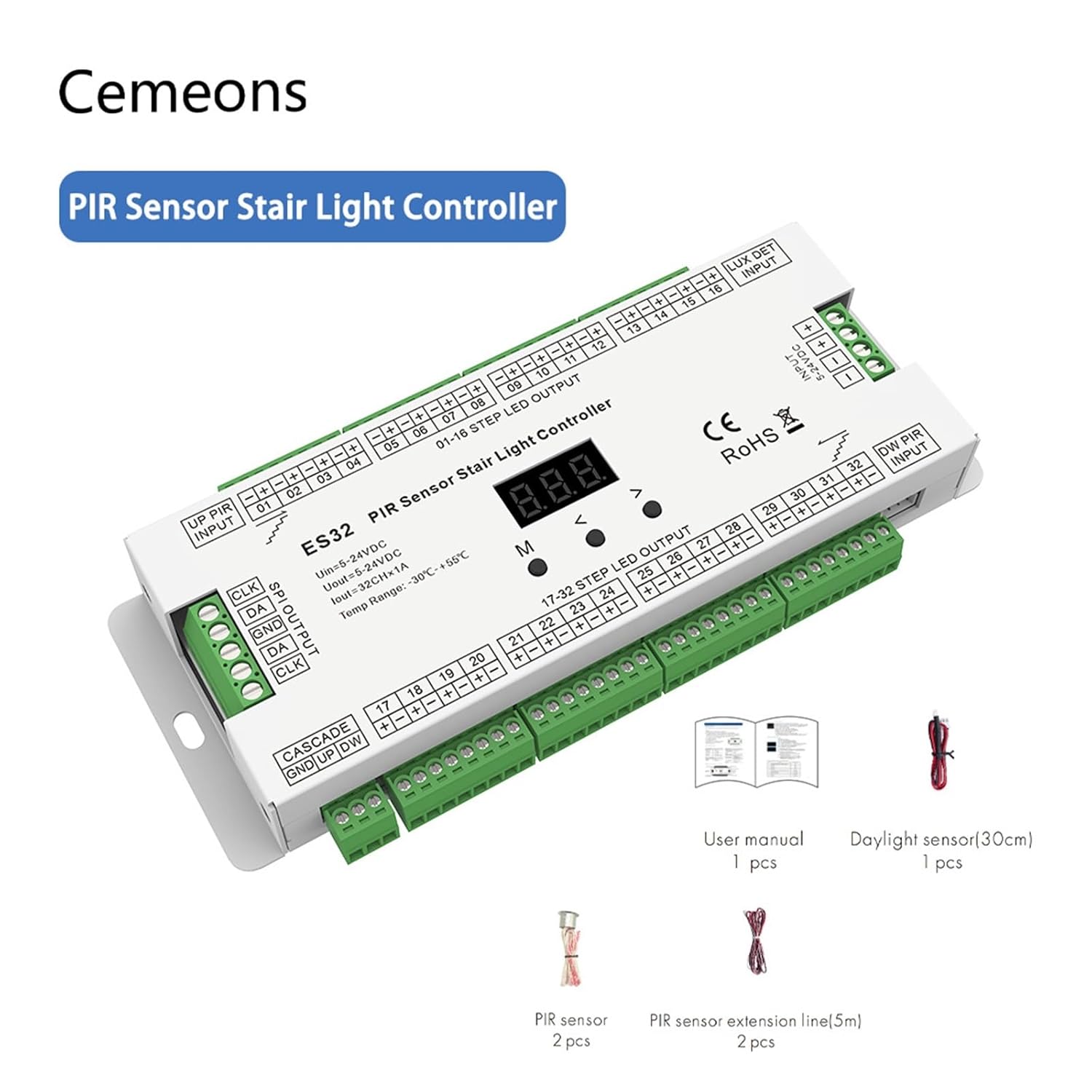

ES32 Stair Controller PIR Sensor 32 Channel Motion Sensor DC 5V 12V 24V Night Light Switch Indoor Stair Light Controller
Product details
| Management number | 213663087 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213663087 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Outlet & Switch CombosES32 Stair Controller PIR Sensor 32 Channel Motion Sensor DC 5V 12V 24V Night Light Switch Indoor Stair Light ControllerfeatureMultifunctional PIR sensor stair light controller features daylight sensor.32 channels of constant voltage output drive low-voltage LED light strips, with a maximum current of 1A per channel.2 sets of SPI (TTL) signal outputs, driving 27 types of IC digital RGB LED light strips,IC type and R/G/B order can be set.Compatible IC: TM1803, TM1804, TM1809, TM1812, UCS1903,UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811,WS2812, TM1829, TM1914A, GW6205, GS8206, GS8208, LPD6803,LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801,WS2803, P9813, SK9822.OLED display and 3 buttons for easy operation.Four work light modes are available.Two stair light controllers can be cascaded.Built-in multiple color modes, speed and brightness adjustable from 1 to 8 levels.The push button switch can be used as a sensing signal input.Has quick self-check function.Any damaged LED channel among the 32 channels can be set to disabled.Model: ES32 stair light controllerConnection method: wiredCertification: CE, EMC, LVD, ROHSVoltage: 5-24VMaterial: metal+ABSPower: 32 x (5-24)WPower supply: DCRemote control distance: Applicable lights: LED light stripOrigin: Mainland ChinaProduct Type: RGB ControllerOutput current: 32CH, 1A/CHChannel: 32CH monochrome strips + 2 SPI (TTL) strips (maximum 2x960 pixels)Control method: PIR sensorOperation mode: OLED display + 3 button operationProtection level: IP20
- Outlet & Switch Combos
| Color | One Color |
|---|---|
| Model | QTIWYXYS |
| Terminal | Blade |
| Brand Name | QTIWYXYS |
| Unit Count | 1.0 Count |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | QTIWYXYS |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 1 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 4.72 x 4.72 x 4.72 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
