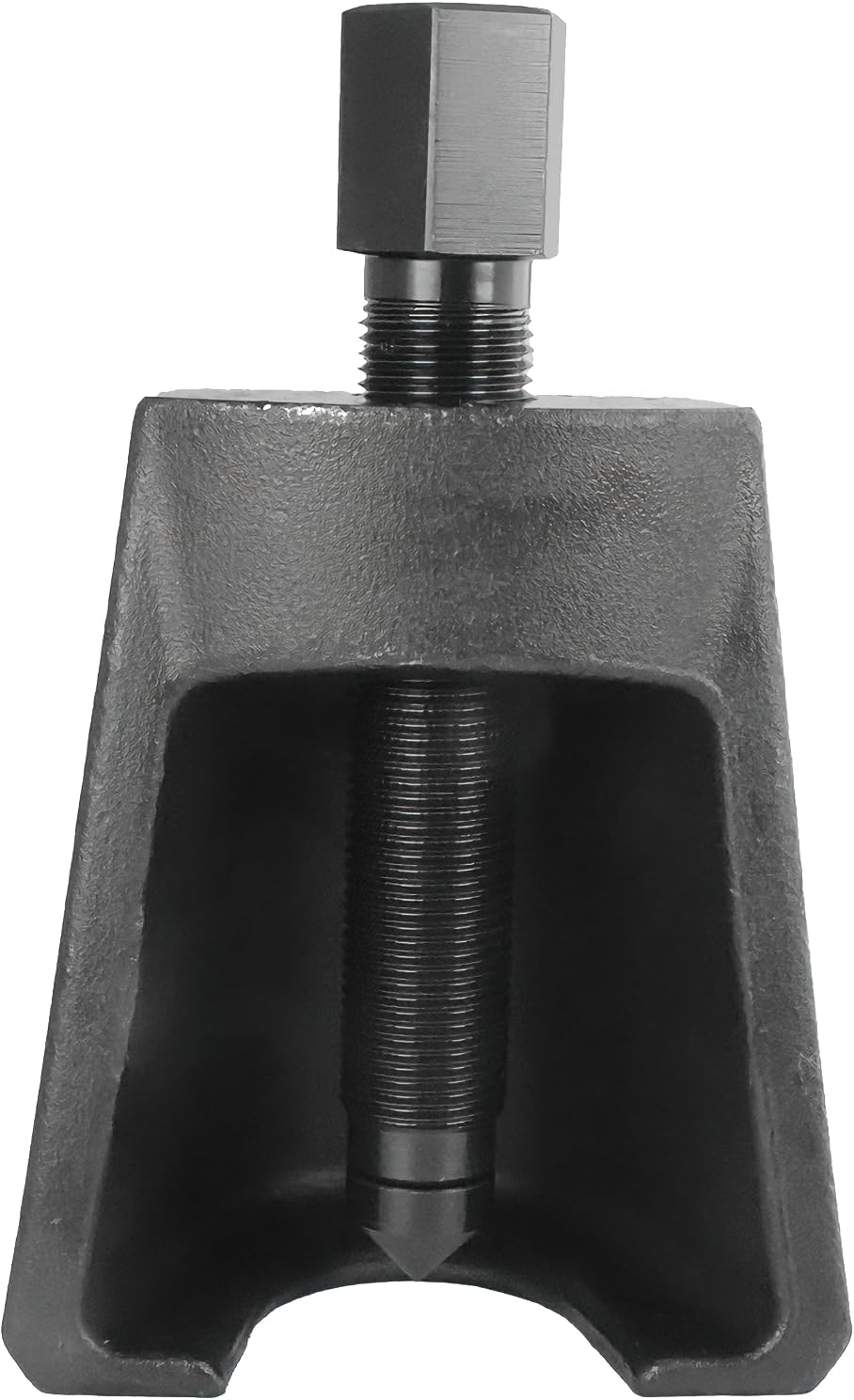

Heavy Duty 8150 Conical Pitman Arm Puller, Pitman Arm Removal Tool Designed to Fit Pitman Arms on Domestic Cars and Light Trucks, Featuring 1.78" Maximum Jaw Spread and 2.83" Reach. Black
$78.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by adherents.xylofutur.fr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$78.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by adherents.xylofutur.fr
Free 30-day returns Details
Product details
| Management number | 219212975 | Release Date | 2026/05/03 | List Price | $31.60 | Model Number | 219212975 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Perfect Fit】8150 conical pitman arm puller is designed to fit pitman arms on domestic cars and light trucks, featuring a 1.78" maximum jaw spread and 2.83" reach. Compatible with popular models such as compatible with Ford F-150, Dodge Ram 2500/3500 (Cummins), Jeep Cherokee (XJ) & other Jeep models, and GMC S-15 Jimmy, and similar vehicles with matching pitman arm sizes. Depending on size and access, may also remove tie rod ends, idler arms, and some ball joints. Always verify pitman arm dimensions before use. Replacement for OE part #8150
- 【Engineered for Extremely Stubborn & Rusted Pitman Arms】 Built for Removing Severely Seized Pitman Arms. Pitman arm removal tool equipped with a 3/4"-16 × 5-1/2" high-strength forcing screw, delivering concentrated pulling force to break loose pitman arms that have been rusted, seized, or untouched for years—without cutting, torching, or unsafe hammering
- 【Slim Conical Design for Tight Spaces】 Self-centering conical profile applies even, focused pulling force with reduced slipping or jaw tilt. Space-saving tapered body (~4.20" overall width), thin lower jaw (~0.19"), and beveled entry edge allow access to tight gaps between the pitman arm and steering gearbox where bulky C-style pullers won’t fit. This slim design also enables removal of tie rod ends, idler arms, and—in some cases—ball joints, depending on clearance and component size
- 【Heavy-Duty Forged Steel Construction】 Built from harden, high-strength forged carbon steel to handle extreme torque under high-load conditions. Pitman arm conical removal tool is designed for high-capacity pulling without bending, jaw spreading, or structural damage when removing stubborn or rusted steering components. Black oxide finish provides rust and corrosion resistance
- 【Removable Center Point & Tool Compatibility】 Detachable Center Tip & 7/8" Drive End. The removable centering point allows flexibility when perfect alignment isn’t possible. The forcing screw end is compatible with 7/8" drive tools, breaker bars, and appropriate impact tools, giving users multiple torque options depending on the situation
- 【Simple Operation】 Simply position the pitman arm conical separator jaws securely behind the pitman arm, thread the center forcing screw until it contacts the steering shaft, then apply torque using a breaker bar or hand wrench on the 7/8" drive until the arm releases. Designed for controlled, even force application
- 【Pro Tips for Stubborn Pitman Arms】For rusted or seized arms, pre-soak the splines with penetrating oil and apply gradual, even tension with the puller. Light hammer taps on the pitman arm help break corrosion. Lubricate the forcing screw threads before use for smoother operation under load. Allow time for corrosion to release—patience improves success. Some experienced users may use power tools with caution, but controlled torque is recommended
- 【100% Satisfaction Guarantee】 If you're not 100% satisfied with our items, simply return it for a refund within 30 days. All Krenlory products support 12-month warranty. Your trust is our priority. Please reach out to us with any concerns
| Brand | Krenlory |
|---|---|
| Model | KL-8150 |
| Item Weight | 4.64 pounds |
| Manufacturer | Krenlory |
| Item model number | KL-8150 |
| Product Dimensions | 6.42 x 4.53 x 2.8 inches |
| Manufacturer Part Number | KL-8150 |
