HTLNUZD Pocket EdgeTX Hall Gimbal Control Transmitter CC2500 / ELRS Up to 16CH for Radiomaster Portable Lightweight Built in LED Light Foldable Antenna with Pocket Color Case for FPV Drone
Product details
| Management number | 219622726 | Release Date | 2026/05/03 | List Price | $26.45 | Model Number | 219622726 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

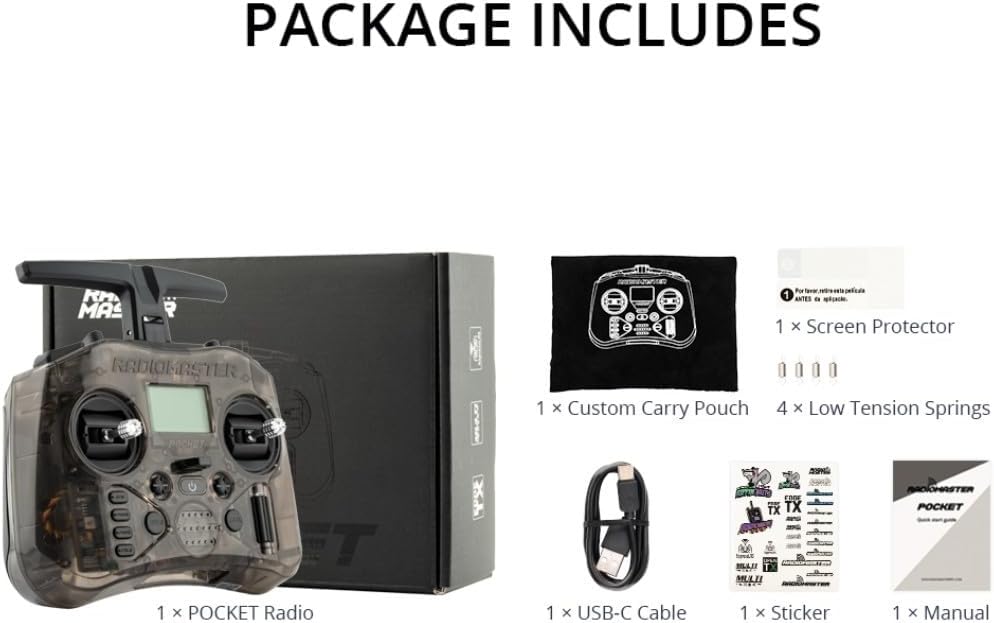

Available with ExpressLRS and CC2500 VersionCC2500 (standard) Version supports all CC2500 protocolsELRS (standard) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)About LBT versionCC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBTELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)SpecificationsPhysical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）Weight: 288 gramsOperating frequency: 2.400GHz-2.480GHzInternal RF Options: CC2500 multi-protocol / ELRS 2.4GHzSupported protocols: Module dependentRF power: CC2500:100mW Max (20dBm) / ELRS FCC: 250mW Max (24dBm) / ELRS EU-LBT: 100mW Max (20dBm)Operational voltage: 6.6-8.4v DCControl distance: > 2km @ 20dBmControl channels: Maximum 16 (Receiver dependent)Display: 128*64 Monochrome LCDBattery: 2pcs 18650 batteries (Not included)Recommended to use 18650 2500mAh-3000mAh tip batteriesCharging: Built in USB-C QC3 ChargingUpgradable Firmware: Via USB or the included SD cardGimbal: Hall-effectPackage Including1 * Pocket Radio1 * Custom Carry Pouch1 * USB-C Cable1 * Screen Protector1 * Sticker4 * Low Tension Springs1 * Manual
- 【System Configuration】Available in ExpressLRS and MPM CC2500 versions, Preinstalled with EdgeTX firmware.
- 【Charging】It is compatible with 18650 batteries, which provide long battery,all the power you need for hours of fun (Batteries not included).

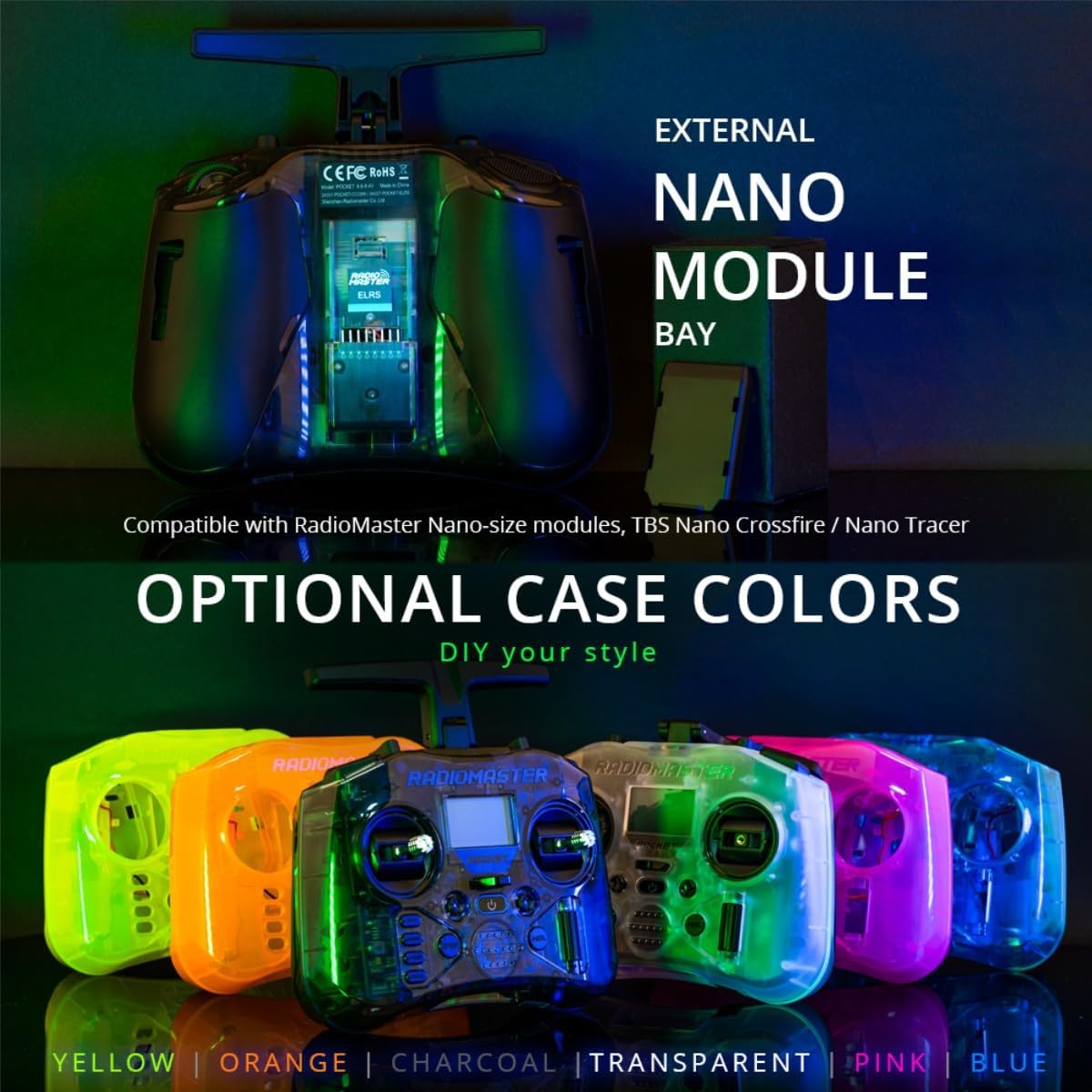

- 【DIY replacement shells】 2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style.
- 【Configure the version】Built-in LED lights help visualize your switch inputs,backlit LCD Screen offering a perfect balance of size and functionality, trim buttons for easy channel trimming.
- 【Portable and lightweight design 】Removable stick ends and a foldable antenna, making it easy to transport and store, features hall effect gimbals as standard for smooth cantering & precise response.
| UPC | 739290414715 739290414722 739290414586 |
|---|---|
| Brand | HTLNUZD |
| Color | (grey) Pocket ELRS Charcoal |
| Voltage | 7.5 Volts |
| Model Name | PocketRadio |
| Item Weight | 0.3 Kilograms |
| Manufacturer | HTLNUZD |
| Power Source | Battery Powered |
| Control Method | Touch |
| Outer Material | ABS |
| Includes Remote | No |
| Bluetooth support | No |
| Installation Type | wired |
| Compatible Devices | FPV Goggles, Headphones, Receivers supporting ExpressLRS or CC2500 protocols |
| Hardware Interface | USB |
| Number of Channels | 16 |
| Additional Features | LCD Screen |
| Supported Standards | ExpressLRS, CC2500 |
| Supported Media Type | USB |
| Warranty Description | 1 |
| Wireless Compability | Radio Frequency |
| Compatibility Options | Partial compatibility with portable audio devices |
| Human Interface Input | Buttons |
| Supported Application | Any audio application or format |
| Connectivity Technology | USB |
| Number of Lithiumion Cells | 2 |
| Connector Type Used on Cable | Lightning |
| Rechargeable Battery Included | No |
