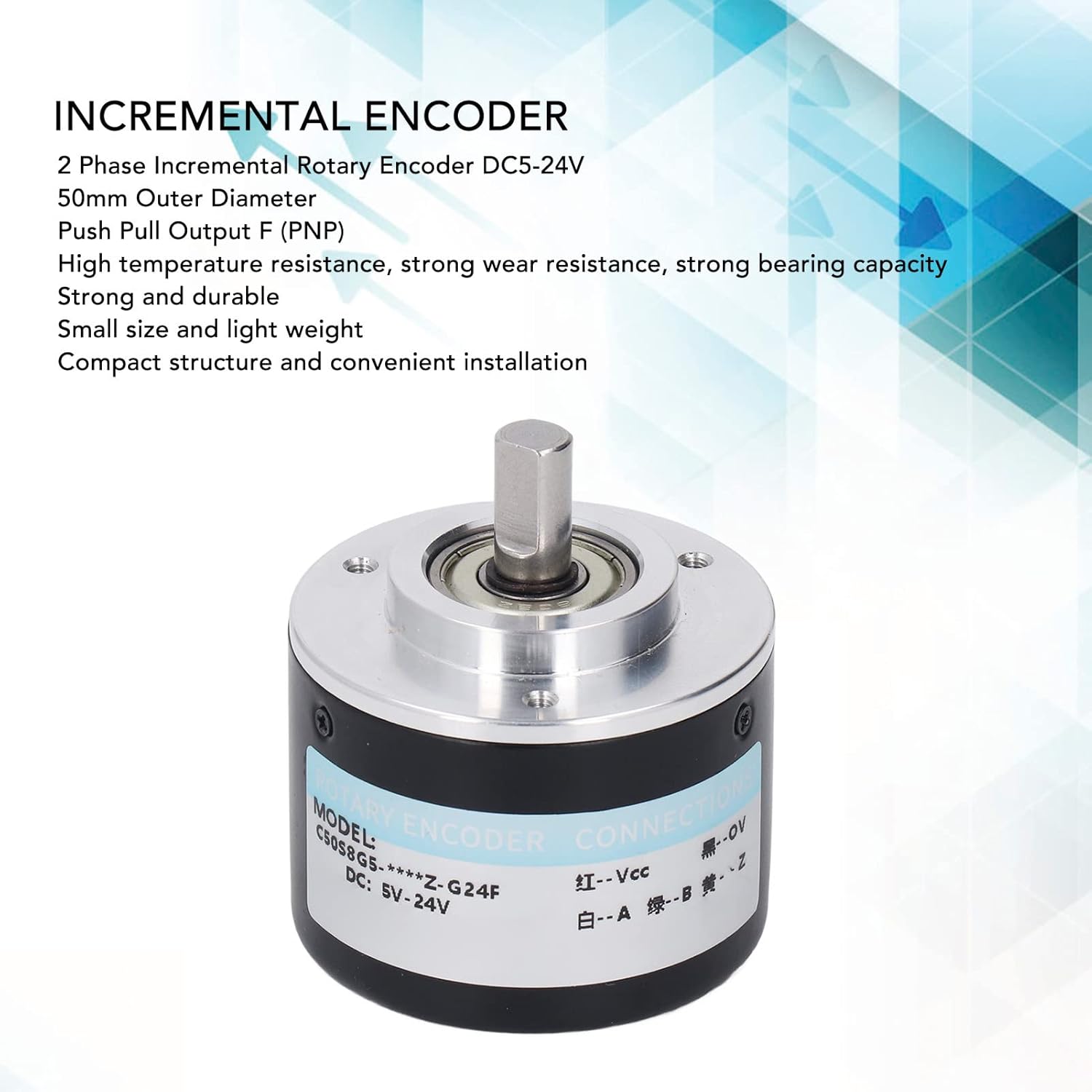

Incremental Rotary Encoder, 1200/2000PR DC5V-24V 2 Phase Incremental Rotary Encoder, 50mm OD, PNP Output (2000P/R)

Specification:Item Type: EncoderMaterial: Stainless Steel, ABSOperating Voltage: DC5-24VOutput Mode: Push Pull Output F (PNP)Encoder Outer Diameter: Approx. 50mm / 2inRadial Load: ?30N Axial Load: ?20NStarting Torsion: ?2x10 Negative Cubic N.MMaximum Speed: 6000r/MinRotational Inertia: 20g/Cm²Allowable Angular Acceleration: 2x10 biquadrate Rad/SShock 1000m/S².6msAnti Vibration: 1000m/S².10-200HzOperating Temperature: -10?-+70?Storage Temperature: -20?-+80?Relative Temperature: Grade: IP50Package List:1 x Incremental Encoder 3 x Screw

• WIDE RANGE OF USE: Our encoder is suitable for intelligent control of all kinds of drainage measurement, automatic fixed length leather, automatic paper cutter, steel cutting length control, measuring height human scale and robot.
• COMPACT AND SMALL SIZE: Two phase incremental encoder is small in size, light in mass, compact in structure, easy to install, etc.
• WEAR Our incremental encoder is wear strong in load bearing capacity, robust and effective in protecting the main body of the motor.
• RADIAL AND AXIAL LOAD: The two phase incremental encoder has radial load less than or equal to 30N and axial load less than or equal to 20N, and the level is IP50.
• AND STABLE: Two phase incremental encoder is high temperature and stable, which can be used safely.
