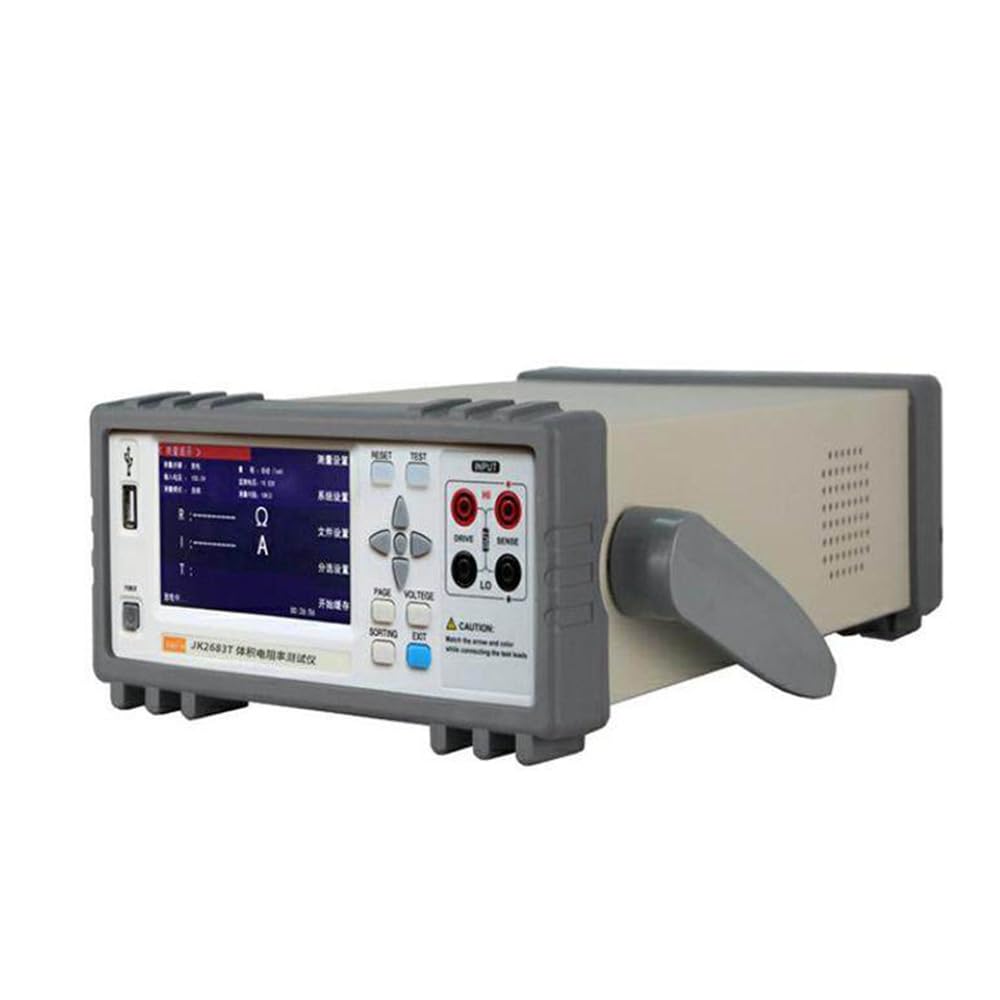

JK2683T Insulation Material Volume and Surface Resistivity Tester 10kΩ~10TΩ Output Voltage 1V~1000VDC Current 10pA~1mA
Product details
| Management number | 211161224 | Release Date | 2026/04/04 | List Price | $691.60 | Model Number | 211161224 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The JK2683T Volume/Surface Resistivity Tester is a versatile integrated measuring instrument designed to determine the volume resistivity and surface resistivity of solid and liquid insulating materials based on the annular three-electrode method principle. Its measurement ranges are as follows: resistance from 10KΩ to 10TΩ; resistivity from 10KΩ·cm to 10TΩ·cm; and micro-current from 10pA to 1mA. This instrument complies with the standard GB/T 1410-2006 / IEC 60093:1980, "Methods of test for volume resistivity and surface resistivity of solid electrical insulating materials." The liquid electrode is manufactured according to the GB 1672-88 standard. The tester features a sorting function and is equipped with a Handler interface, as well as USB, RS-232, and RS-485 interfaces. Test results can be recorded, analyzed, and printed via the included PC software.
- Voltage adjustment range: 1 ~ 1000 V, with 1V steps;4.3-inch color LCD display;RS-232C or Handler interface output
- 13-decade high-resistance measurement range, configured with a shielding box;GD/NG (Good/No Good) audio-visual indication and trigger modes: Internal, Manual, External, and Remote;PC software for data process analysis, addressing the measurement of electrical properties in insulating materials
- Insulation resistance test range: 10KΩ to 10TΩ;Synchronous display of insulation resistance, volume/surface resistivity, and leakage current
- Applications:This instrument is used for insulation performance testing and insulation resistance measurement of electronic and electrical products, including:Measuring the resistance values of rubber, plastic, powder, particles, electronic components, dielectric materials, wires and cables, and electrostatic products (such as electrostatic shoes, electrostatic plastic/rubber products, and antistatic raised floors in computer rooms).
- Power Supply Requirements:Voltage: 198VAC ~ 240VAC,Frequency: 50Hz,Power: Max. 50VA
| Color | Gray |
|---|---|
| Model | JK2683T |
| Brand Name | Tonghui |
| Style Name | Industry |
| Manufacturer | Jinko |
| Power Source | Corded Electric |
| Included Components | ABS |
