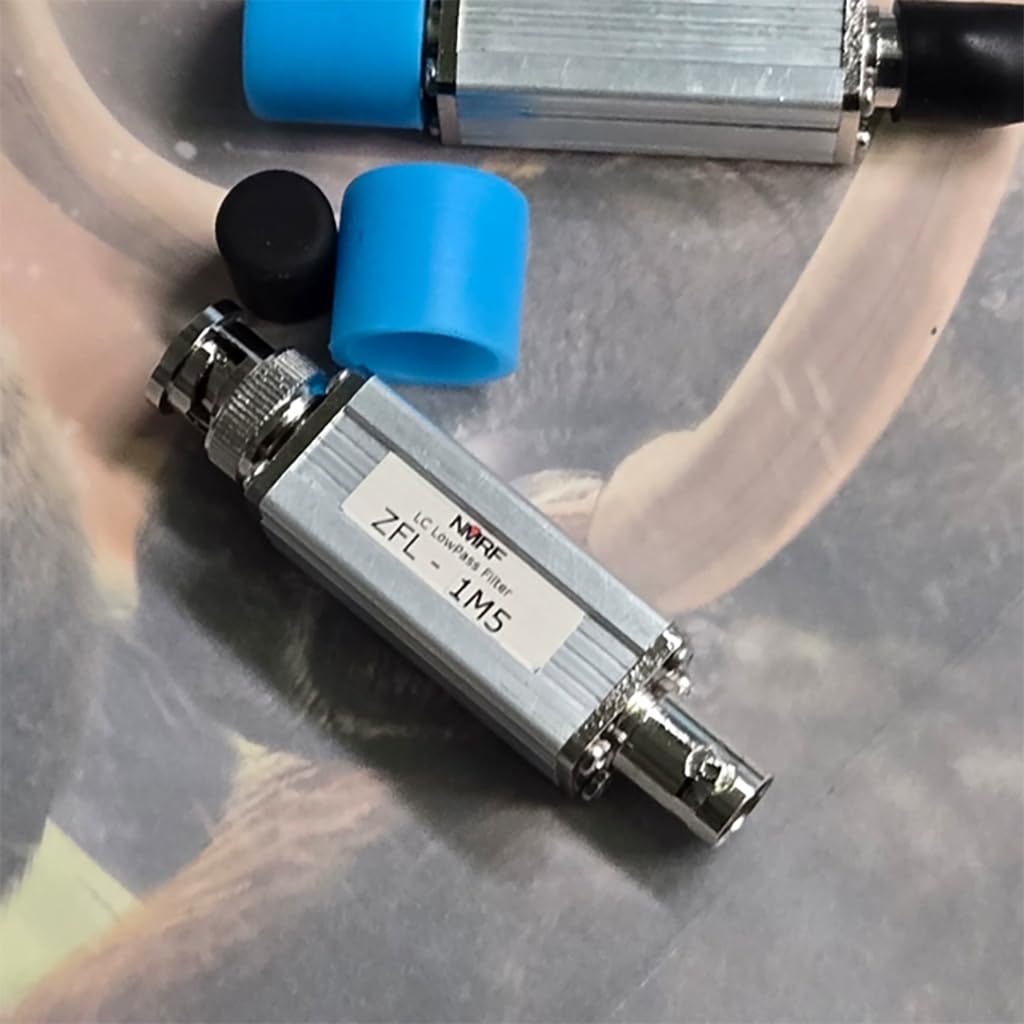

JMT Low-Pass Filter BNC Male to Famale Interface LC Discrete Component Construction Compact for High-selectivity Applications (1.5MHz)

JMT Low-Pass Filter BNC Male to Famale Interface LC Discrete Component Construction Compact for High-selectivity Applications Features: Compact size, flat passband, high out-of-band rejection Applications:Laboratory use,Other high-selectivity applications Nominal impedance: 50 Ω Maximum Power Handling: 5W (37dBm) Interfaces: BNC-M (Male Connector, Inner Pin), BNC-F (Female Connector, Outer Pin) 3.5MHz: Model:ZFL-3M5 Insertion loss: ≤ 1.5 dB @ DC - 2.5 MHz ≤ 2.0 dB @ 2.5 - 3.5 MHz >40 dB @ 8.0 MHz >50 dB @ 10 - 700 MHz Frequency Response Plot:Sweep range: 1-1000MHz logarithmic scale; orange line indicates transmission loss, brown line indicates reflection loss; vertical scale is 10dB per division. 7MHz: Model:ZFL-07 Insertion loss: <= 1.0 dB @ DC - 3.5 MHz ≤ 1.5 dB @ 3.5 - 7.0 MHz >40 dB @ 15 MHz >50 dB @ 20-1000 MHz Frequency Response Plot: Sweep range: 1-1000 MHz logarithmic scale; orange line indicates transmission loss, brown line indicates reflection loss; vertical scale is 10 dB per division. 1.5MHz: Model: ZFL-1M5 Insertion Loss: <= 1.0 dB @ DC-1.5 MHz >40 dB @ 7.0 MHz >50 dB @ 10-300 MHz Frequency Response Chart: Scan range: 0.1-300MHz logarithmic scale; blue-green line indicates transmission loss; brown line indicates reflection loss; vertical scale increments are 10dB per division.

• Nominal impedance: 50 Ω. Maximum Power Handling: 5W (37dBm). Interfaces: BNC-M (Male Connector, Inner Pin), BNC-F (Female Connector, Outer Pin).
• 3.5MHz Insertion Loss: ≤ 1.5 dB @ DC - 2.5 MHz, ≤ 2.0 dB @ 2.5 - 3.5 MHz, >40 dB @ 8.0 MHz, >50 dB @ 10 - 700 MHz.
• 7MHz Insertion Loss: <= 1.0 dB @ DC - 3.5 MHz, ≤ 1.5 dB @ 3.5 - 7.0 MHz, >40 dB @ 15 MHz, >50 dB @ 20-1000 MHz.
• 1.5MHz Insertion Loss: <= 1.0 dB @ DC-1.5 MHz, >40 dB @ 7.0 MHz, >50 dB @ 10-300 MHz.
• Applications:Laboratory use,Other high-selectivity applications. Compact size, flat passband, high out-of-band rejection.
