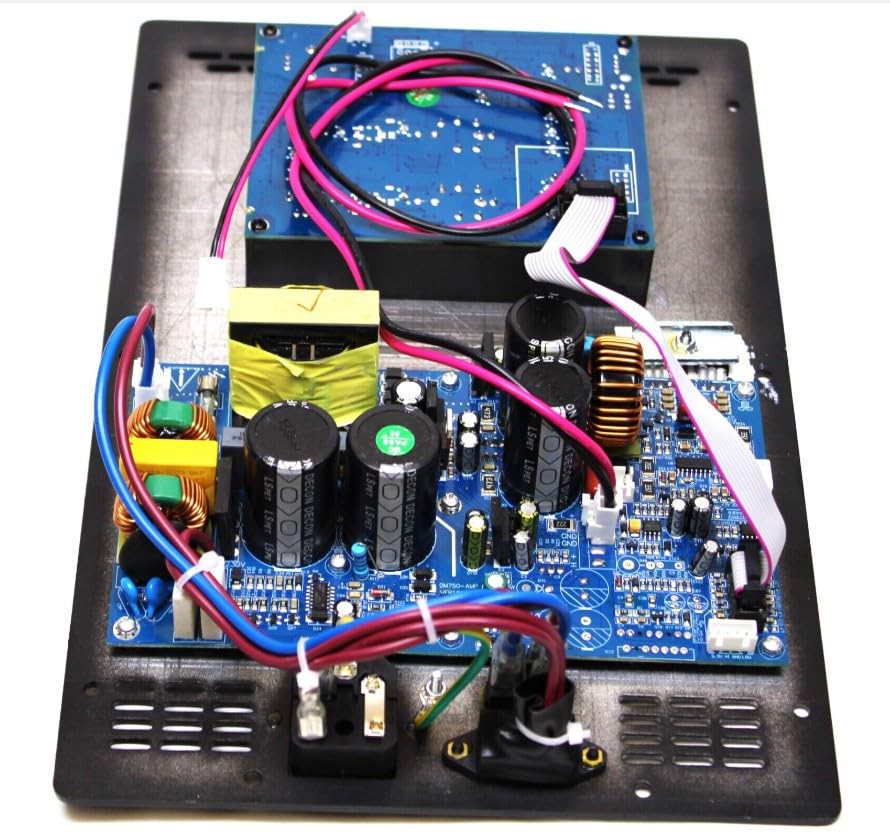

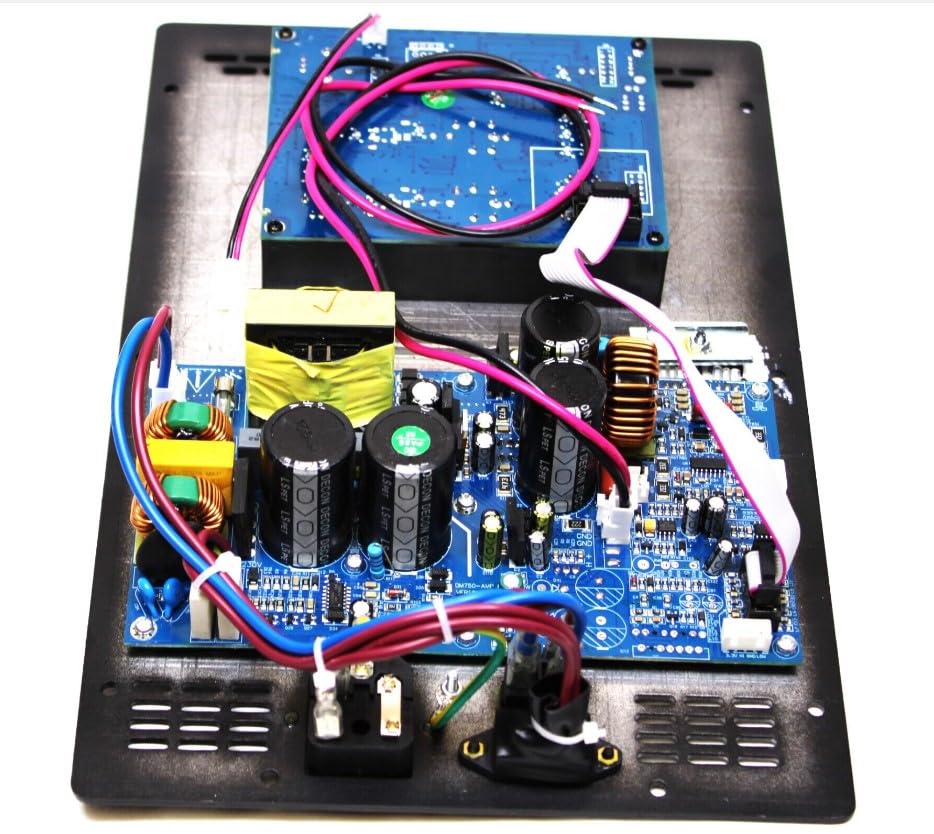

LASE Replacement Amplifier Module for JBL EON-618S Sub-Woofer Powered Speaker Amplifier Module ONLY Does NOT Include AMP Chamber.

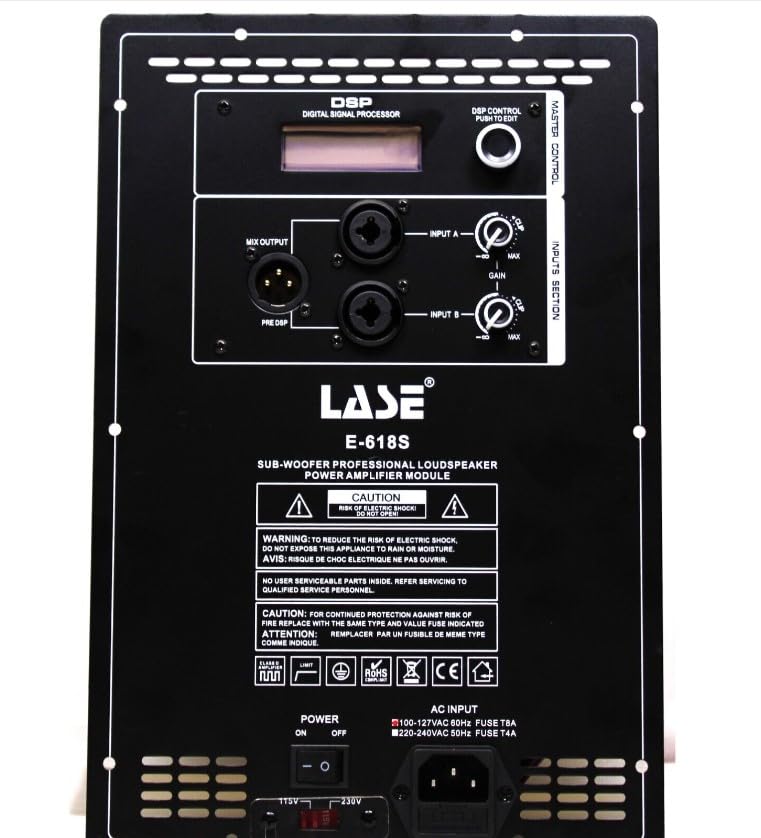

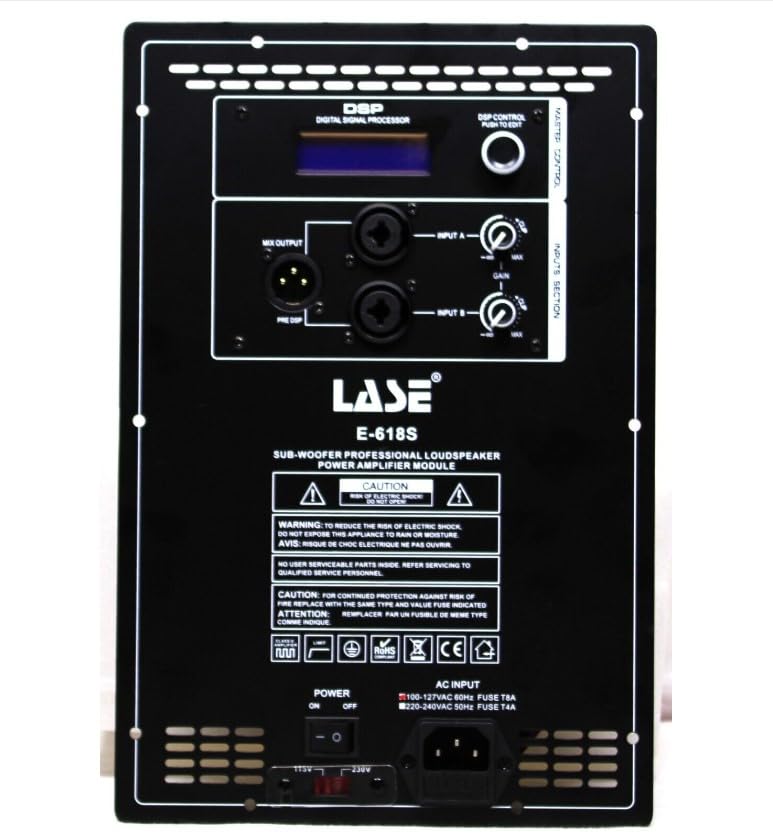

ATTENTION !! AMPLIFIER PLATE MODULE ONLY DOES NOT INCLUDE THE BACK PLASTIC CHAMBER . LASE E-6128S Replacement Amplifier Module for JBL EON 618S Powered Speakers Very Easy To Install. The LASE PRX 600A control panel is simple and neatly laid out, with the user controls being restricted to power, a rotary level control, and a pair of push switches for selecting 'EQ' Boost/Flat settings or Line/ Mic sensitivity. There are two XLR connectors, one for signal input and one for link out, so that additional speakers or systems can be daisy‑chained. The input socket is one of those handy 'combi' types, and will accept either a three‑pin XLR or a standard jack plug (balanced or unbalanced). Specifications : Power Output :500W RMS (overall) ; 1000W ( Peak) Frequency Response : (- 3dB): 42.5Hz - 150Hz Input Connector : Balance Female XLR/ 1/4" Line/Mic. Level Input Output Connector: Balanced Male XLR " Mix Out". Class :D Operating voltage : 220 V / 110 V 50/60 hz nominal Module Connect : Two Pin Molex: Red + / Black - to open end speakers wires. (SEE PICS) Dimensions : Length:12"(305mm) x Width:7.95"(202mm) x Depth:3.14" (80mm) Packing dimension : L:13.98"(355mm) x W: 11.02"(280mm) x D:5.12"(130MM). Net weight :2.64lbs(1.2Kgm) Gross weight :4.19 lbs(1.9Kgm)
