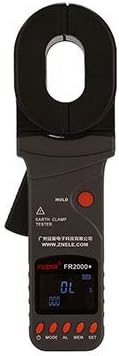

LCD Clamp Ground Resistance Tester FR2000+ Earth Tester Loop Resistance Meter 0.01Ω-500Ω Storage 500

MeterTo MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service. Introduction FR2000+ is a new generation of groundless pile measurement method. It uses a brand new generation of LCD, backlight display and microprocessor technology to measure the grounding resistance through inductive method.When measuring a grounded system with a loop, it is not necessary to disconnect the ground lead wire, and no need for auxiliary electrodes. Widely used in telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on. Specification Model: FR2000+ Range: 0.01Ω-500Ω Resolution: 0.001Ω Accuracy: ±1%±0.01Ω Measurement Method: Mutual induction Clamp Diameter: 65mmx32mm Clock Function: Have LCD Dimension: 46mm×29mm Sampling Speed: About 2 times/second Data Storage: 300 Groups, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full Data Review: "MR" symbol indication when reviewing data Overflow Display: Exceed measurement range overflow function: “OL ” symbol display Test Method: Clamp CT, Integral Method Interference Test: Automatic identify interference signal, "NOISE" symbol indication when the interference current is large Alarm Function: Alarm when the measured value exceeds the alarm setting value Battery Voltage: Remind timely charging when battery voltage is low Automatic shut-down: "APO" instruction, automatic shutdown after 5 minutes boot Power Consumption: 50MA Max Insulation Resistance: 20Ω or more (500V between circuit and outside) Pressure Resistance: AC 3700V/rms

• Resistance Range: 0-500Ω; New black screen design, luxury;
• Real-time clock function;
• Using fast filtering technology, strong anti-interference ability;
• New design, long life clamp head;
• Quick self-test function without waiting.
