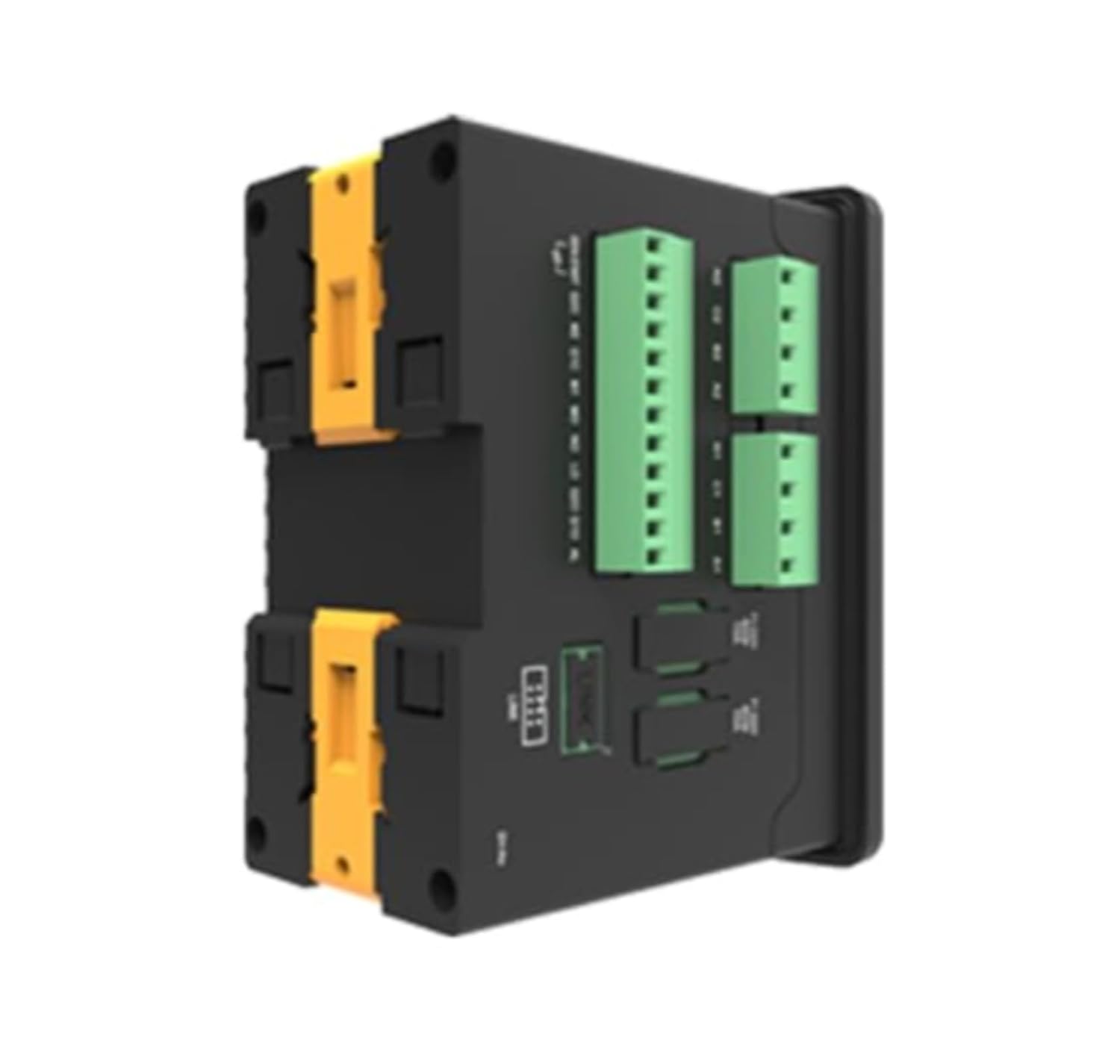

Original SmartGen ATS HAT160 Dual Power Automatic Transfer Switch Controller 230/400VAC
Product details
| Management number | 210751894 | Release Date | 2026/04/02 | List Price | $62.83 | Model Number | 210751894 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Original SmartGen ATS HAT160 Dual Power Automatic Transfer Switch Controller 230/400VAC Product Overview: HAT160 ATS Controller is suitable for CB ATS of single motor. It can accurately detect 2-way-3-phase 4-wire/single-phase 2-wire voltage and judge voltage abnormal (such as, over voltage, under voltage, over frequency, under frequency and lack of phase), then control ATS after delay. When ATS switch abnormally, the controller can detect close/open failure and alarm on the front panel to ensure the correct action of ATS. After abnormal of I# power, the controller will send signal to start the genset. The controller has remote communication, remote control and parameter configuration functions via LINK port communication. HAT160 controller can detect 2-way (2-way mains and 2-way gens or 1-way mains and 1-way gens) 3-phase/single phase voltage and control ATS. - Measure and display 2-way 3 phase Voltage and Frequency: - Over/under voltage, over/under frequency and loss of phase protection (active or deactive can be configured); - Close/Open failure alarm; - LED display work status; - Auto/Manual mode. In manual mode, ATS can be switched by pressing front panel button; - Applicable for 2 isolated neutral line. - Automatic Re-closing; - Close delay, delay is 0.5s; - Any one way of A phase voltage is normal, the controller and ATS can normally work. When 2-way power and volts are abnormal at the same time, if any way of A phase voltage is normal, ATS will automatically transfer to Breaking (Middle) Position; - Fire reset interface. When the input port is enabled, ATS will automatically transfer to Breaking (OFF) Position; - Parameter setting: parts of parameters can be adjust from front panel; all can be adjust via LINK port(with SG72A adaptor) by using computer software;
- Dual power ATS controller 230/400VAC
- Detects voltage/frequency abnormalities
- Auto/manual mode with LED display
- Close/open failure alarm function
- Remote communication & control capable
| UPC | 602838312746 |
|---|---|
| Terminal | Through Hole |
| Brand Name | Auto Engineering |
| Switch Type | Push Button |
| Circuit Type | / |
| Contact Type | Normally Open |
| Manufacturer | Auto Engineering |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Current Rating | 5 Amps |
| Operation Mode | ON-NONE-OFF |
| Item Dimensions | 3.54 x 6.3 x 4.72 inches |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 36 Volts |
| Specification Met | / |
| Included Components | 1 |
| Number of Positions | 1 |
| Lower Temperature Rating | 30 Degrees Celsius |
| Upper Temperature Rating | 85 Degrees Celsius |
| International Protection Rating | / |
