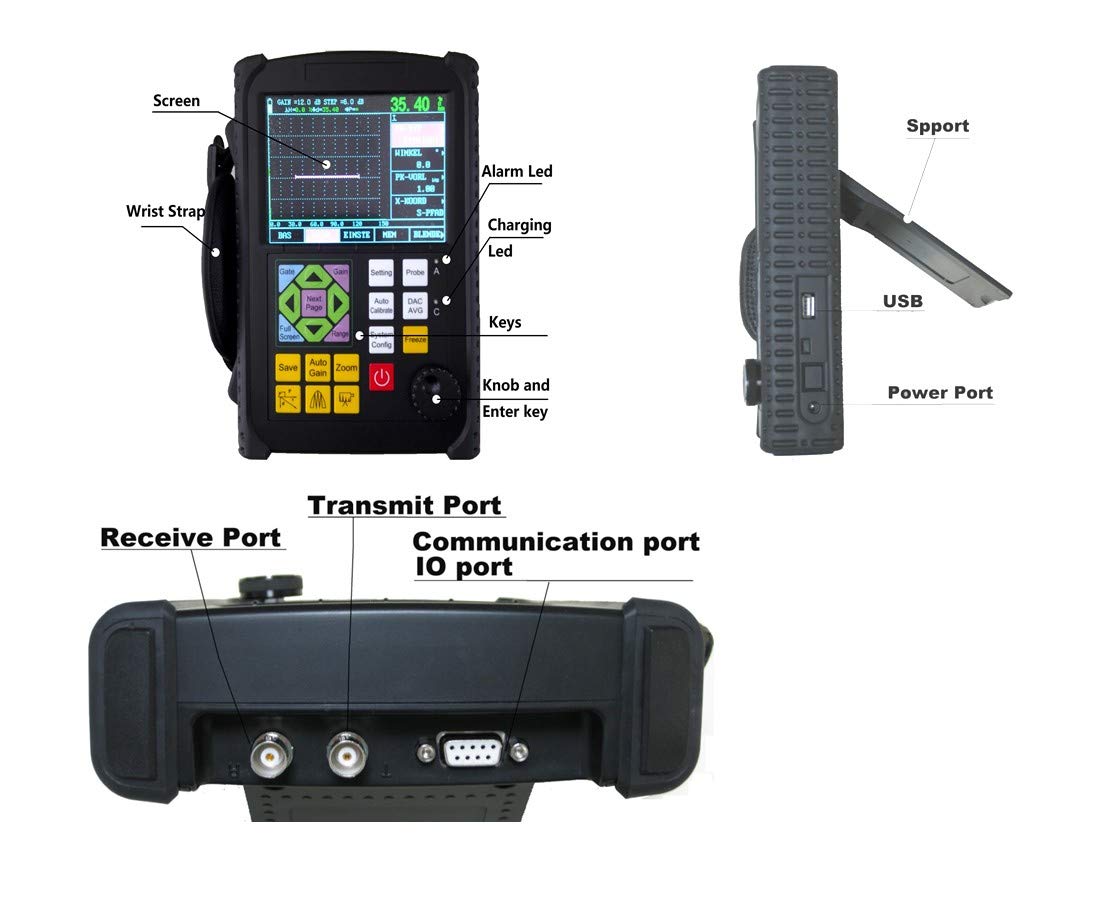

Portable ultrasonic Flaw Detector Scan Range (mm):0~10000

Performance Features Automated calibration of transducer Zero Offset and/or Velocity ； Automated gain、Peak Hold and Peak Memory； Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф) Automated switch three staff gauge ((Depth d、level p、distance s)； 500 independence setup, any criterion can be input freely, we can work in the scene without test block； Big memory of 1000 A graph. Gate and DAC alarm；Acoustic-Optical alarm; USB port，communication with pc is easy； The embeded software can be online updated； Li battery, continue working time up to 12 hours; Display freeze; Automated echo degree; Angles and K-value; Lock and unlock function of system parameters; AWS D1.1； Electronic clock calendar ; There are 14 standards of DAC in MTUF600. Automated make video of test process and play; Connect the Upan,the length of video is unlimited Two gates setting and alarm indication; High-speed capture and very low noise; DAC、AVG、TCG、B Scan ; Solid housing (IP65); Automated calculate the size of the flaw with w ide bottom type in AVG function. 6dB DAC functions; Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles; Powerful pc software and reports can be export to excel; Range of scanning (mm)：0～10000 Steps: 2.5,5,10,20, 30,40,50,60,70,80,90, 100,150,200, 250, 300, 350, 400, 450,500,600,700,800,900,1000,2000,3000,4000,5000,6000,7000,8000,9000,10000 Adjusting step: 0.1mm（2.5 mm～99.9mm），1mm（100mm～10000mm） D-delay (s)：-20～+3400 Steps: -20,-10,0.0, 10, 20, 50,100,150,200,250,300,350,400,450,500, 600, 700,800,900,1000,1500,2000,2500,3000,3400. Adjusting steps: 0.1（-20s～999.9s），1（1000s～3400s） P-delay：0.0～99.99 Adjusting steps: 0.01 BatteryLi battery 7.4V 4800mAh

• This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field.
• The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.
• When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material.
• Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.
