Replacement Damper Motor Actuator for Honeywell ARD ZD M847D 2 Wire Spring Motor RZ3-1MNormally Ships Same Day

The Retrozone RZ3-1M 2 Wire Spring Return Damper Actuators are designed to be used as replacements for Honeywell’s M847D, M847D1004 & similar HVAC damper actuators.

• Easy Installation: The Retrozone RZ3-1M 24 vac 2 wire spring return damper motors are designed as drop in replacements for Honeywell's M847D series motors on popular ZD and ARD dampers, including M847D1004, M847D1012, and other M847D series motors.
• Wide Application: These motors also replace most Honeywell 2 wire spring return motors, as well as many other brands and work with normally open and normally closed installations. These motors are also replacements for the Hansen 135-6 motor, as well as other brands with the same footprint.

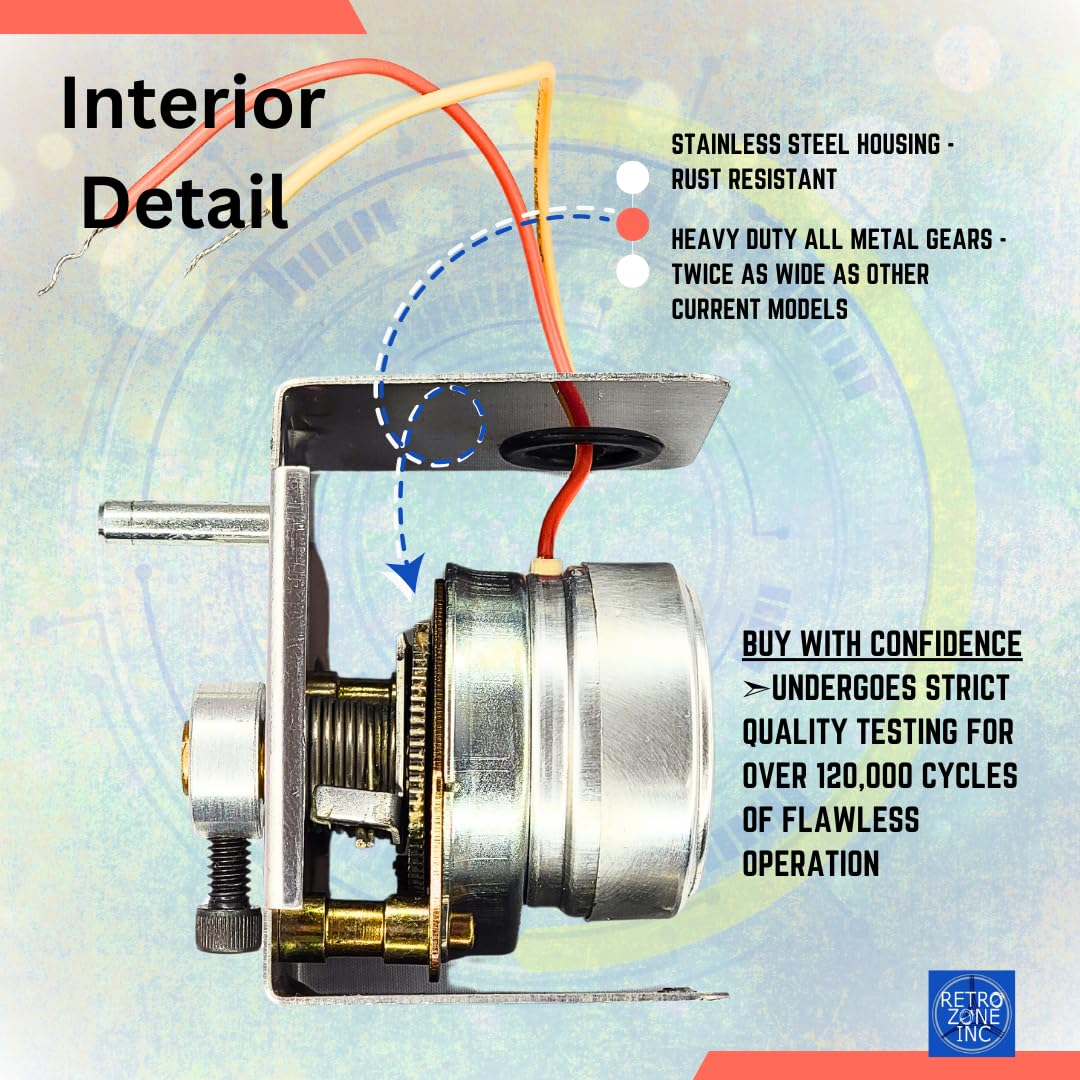

• Durable and Reliable: Our all metal gears and precision engineering get rid of the failure prone thin metal or plastic OEM gears from Honeywell. Our gears are twice as wide as the new “improved” Honeywell plastic-covered motors.
• Includes Everything You Need for Easy Installation: Don't be left in the dark when your new motor, damper, transformer, or thermostat fail to work. Our handy 24 volt test light and troubleshooting guide, included with motor, allow you to test power to your motor and perform a complete diagnostic evaluation of your zoning system when used with our 2 page troubleshooting guide.
• Voltage: 24 VAC +/- 10%, 60 Hz, 0.36A
• Torque Rating: Power open 32 in. oz./spring close 32 in. oz. - torque is consistently delivered throughout the full 90º rotational operating range to open and close the damper, irrespective of whether the actuator is operating in Power Advance Mode (energized) or Spring Return Mode (de-energized).
• Speed Stroke and Rotating Angle: Motor driven 30 sec./spring return 6 sec. and 93.5º
• Reliability: Quality tested for over 120,000 cycles for exceptional operation with no decay in delivery torque over the life of the actuator
• Noise Level: Very quiet operation, typically ≦ 40dB at 3’
