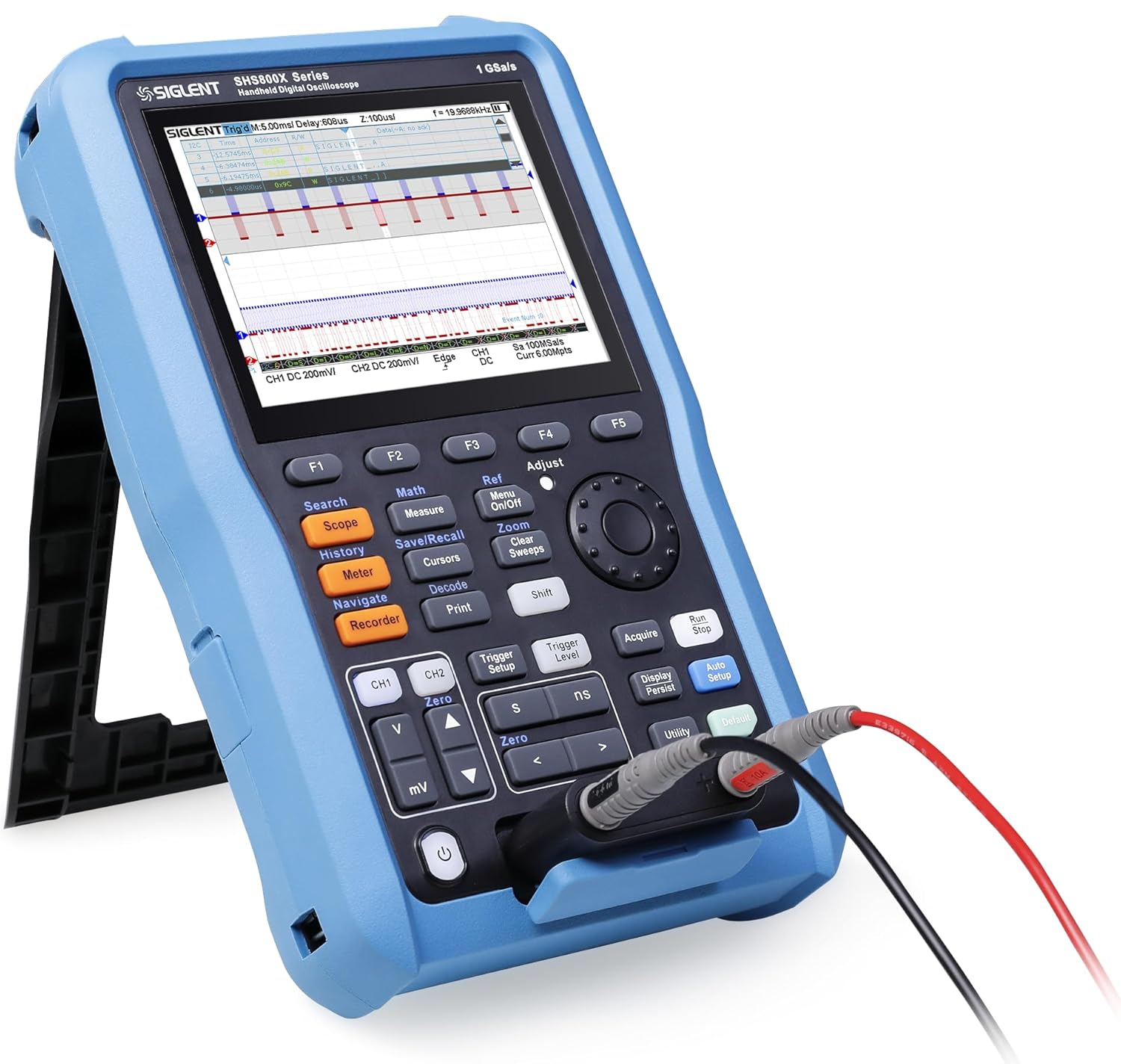

Siglent Technologies SHS810X Handheld Oscilloscope,100 MHz,2CH,1GSa/s,Multimeter Mode,5.6-inch TFT-LCD Display
Product details
| Management number | 211698953 | Release Date | 2026/04/04 | List Price | $391.60 | Model Number | 211698953 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SIGLENT’s SHS800X Handheld Oscilloscopes have two non-isolated scope channels and one isolated multimeter channel. Portable digital oscilloscopes are available in 100 and 200 MHz versions, feature a single ADC with 1 GSa/s maximum sample rate and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has a sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is activated, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. For ease of use, the most commonly used functions can be accessed with its user-friendly front panel design.
- Intelligent triggers: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
- 6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test.
- 1 Mpts FFT: Support Peaks and Markers
- 5.6-inch TFT-LCD display with 640 * 480 resolution

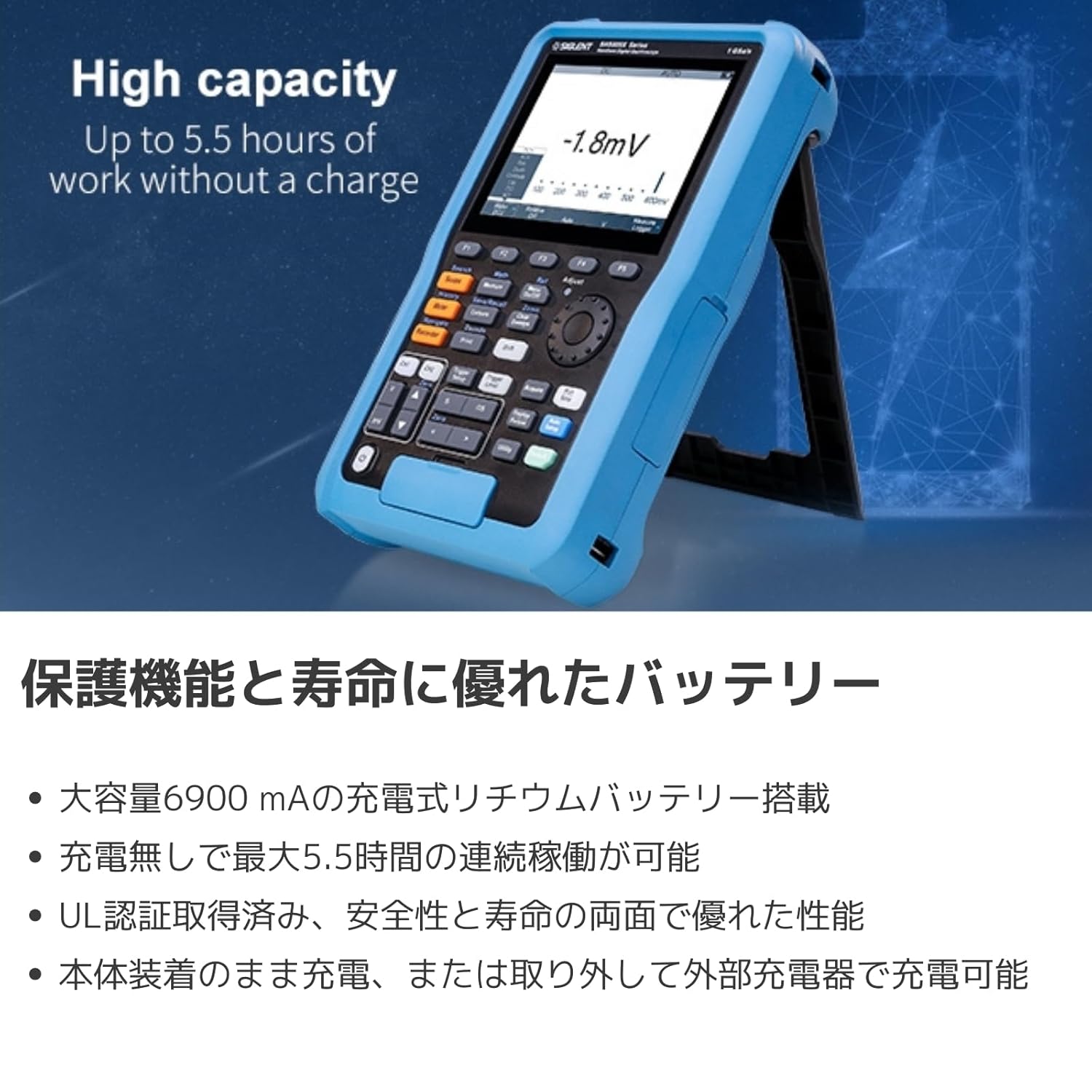

- UL2054 certified lithium battery pack, 6900 mAh capacity, external charger
| Batteries | 1 Lithium Ion batteries required. (included) |
|---|---|
| Item Weight | 10 pounds |
| Manufacturer | Siglent Technologies |
| Item model number | SHS810X |
| Product Dimensions | 20 x 18 x 15 inches |
