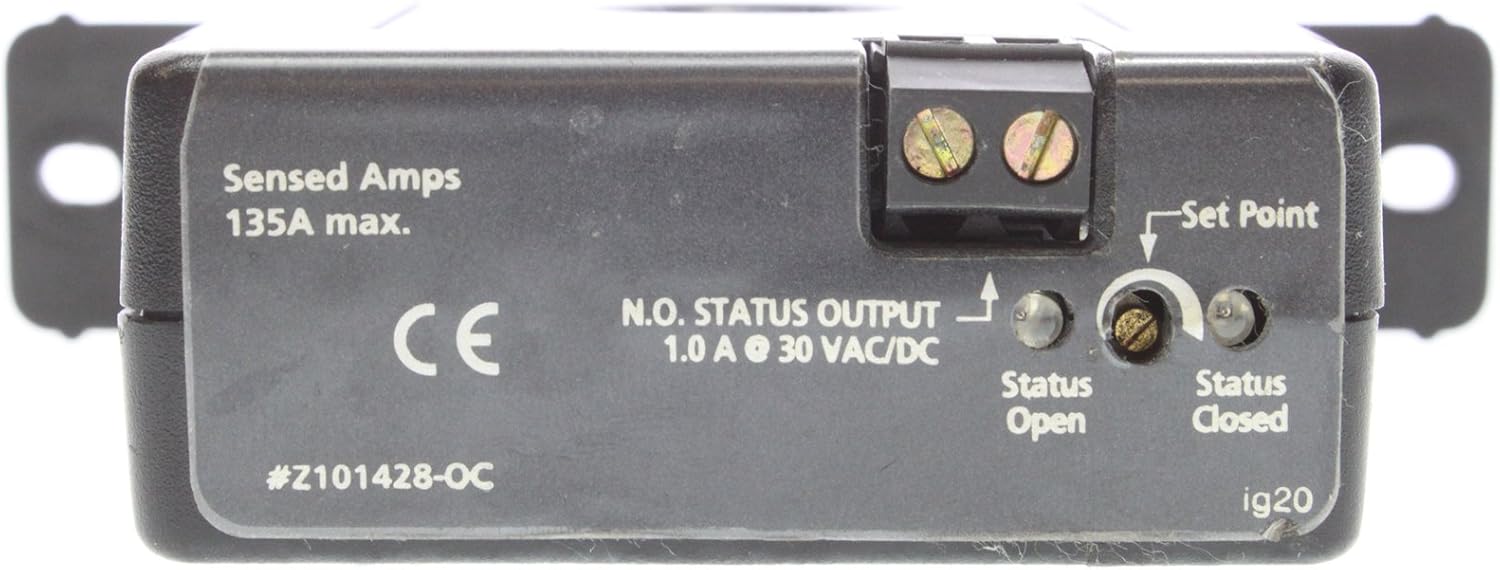

Veris,Current Switch,SLD-Core,Adj,N.O., H708
Product details
| Management number | 220372538 | Release Date | 2026/05/03 | List Price | $28.00 | Model Number | 220372538 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Sensor Power Induced from monitored conductor Insulation Class 600VAC RMS (UL) 300VAC RMS (CE)Frequency Range 50/60 HzTemperature Range -15° to 60°C (5° to 140°F)Humidity Range 10-90% RH non-condensingHysteresis 10% (typical)Terminal Block Maximum Wire Size 14 AWGTerminal Block Torque (nominal) 4 in-lbsAgency Approvals UL 508 open device listing CE: EN61010-1:2001-02 CAT III deg. 2 basic insulation Do not use the LED status indicators as evidence of applied voltage.For applications requiring double or reinforced insulation please contact the factory.
- H708 current switch offers high performance, with a wide array of amperage range options
- This product can accurately detect belt loss, coupling shear, or other mechanical failure on loads from 1/5 to 100HP
- APPLICATIONS Detecting belt loss, coupling shear, and mechanical failure Verifying lighting circuit and other electrical service run times Monitoring status of industrial process equipment Monitoring status of critical motors (compressor, fuel, etc)
- Small size
- Fits easily inside small enclosures Status LEDs for easy setup and local indication 1 Amp status output for increased application flexibility100% solid state and polarity insensitive, with a 5-year warranty
| UPC | 643129362545 |
|---|---|
| Color | Black |
| Model | H708 |
| Terminal | Screw |
| Brand Name | Veris Industries |
| Unit Count | 1 Count |
| Item Weight | 0.3 Pounds |
| Part Number | H708 |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | Veris |
| Material Type | Brass |
| Mounting Type | Panel Mount |
| Connector Type | Screw Terminal |
| Control Method | App |
| Operation Mode | Mechanical,Electrical |
| Item Dimensions | 4 x 1 x 3 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 600 Volts (AC) |
| Specification Met | CE, UL |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
