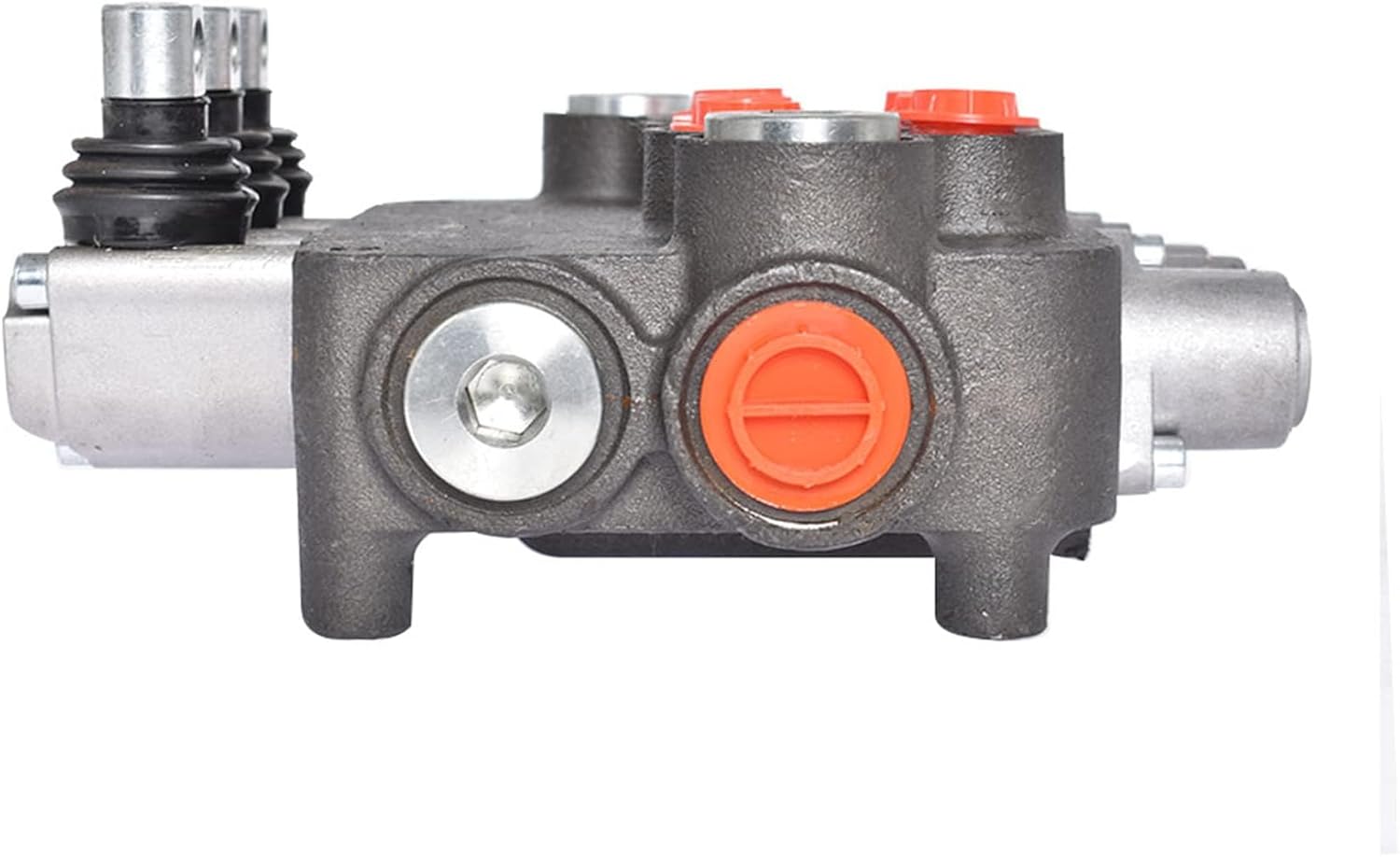

waltyotur Hydraulic Directional Control Valve, 3 Spool 21 GPM Hydraulic Loader Valve, SAE Ports, 3625PSI Double Acting Valve Directional Control Valve for Small Tractors Log Splitters

Specification:Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSIPreset Pressure Relief: 2610 PSIFlow Rating: 21 GPM (80 l/min)A & B Work Ports: 10 SAE O-Ring (7/8"-14) ThreadInlet Port: 10 SAE O-Ring (7/8"-14) ThreadOutlet Port: 12 SAE O-Ring (1-1/16"-12) ThreadN Port: 8 (1/2 - 14) G Thread (British Thread Parallel)3 - 5/16" Mounting HolesFeatures:-Solid Construction: Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.-High Performance: The relief valve range can reach up to 3625 PSI and the maximum flow is up to 21 GPM.-Spring Return: All spools are standard double acting with springs return to the neutral position which for double-acting cylinders.-Inner Check/Relief Valve: The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.-Multiple Control Ways: We have many control ways to choose: manual control, pneumatic control, hydraulic and electric control. SAE O-Ring ports ensure solid seal and prevent blockages.-Durable Quality - This hydraulic directional control valve comes with 3 spool, with cast iron construction for long-time use.-Wide Application: The design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.Package Included:1 x 3 Spool Hydraulic Directional Control Valve

• Hydraulic Spool Valve: Equipped with 3 spools and SAE type ring inlet/outlet port. Maximum pressure of this hydraulic is 3625 PSI, and maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
• Double Acting Cylinders: Hydraulic control valve used to operate double-acting cylinders. All standard spools are springs-returned and can be reset to the neutral position. There are springs at the bottom of the handles that make the joysticks easy to control.
• Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
• Structure: This hydraulic directional control valve comes with 3 spool, with cast iron construction for long-time use, and the solid structure can provide long-term service. The design allows it to install in narrow areas and maximizes its control capabilities.
• Wide Application: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.
